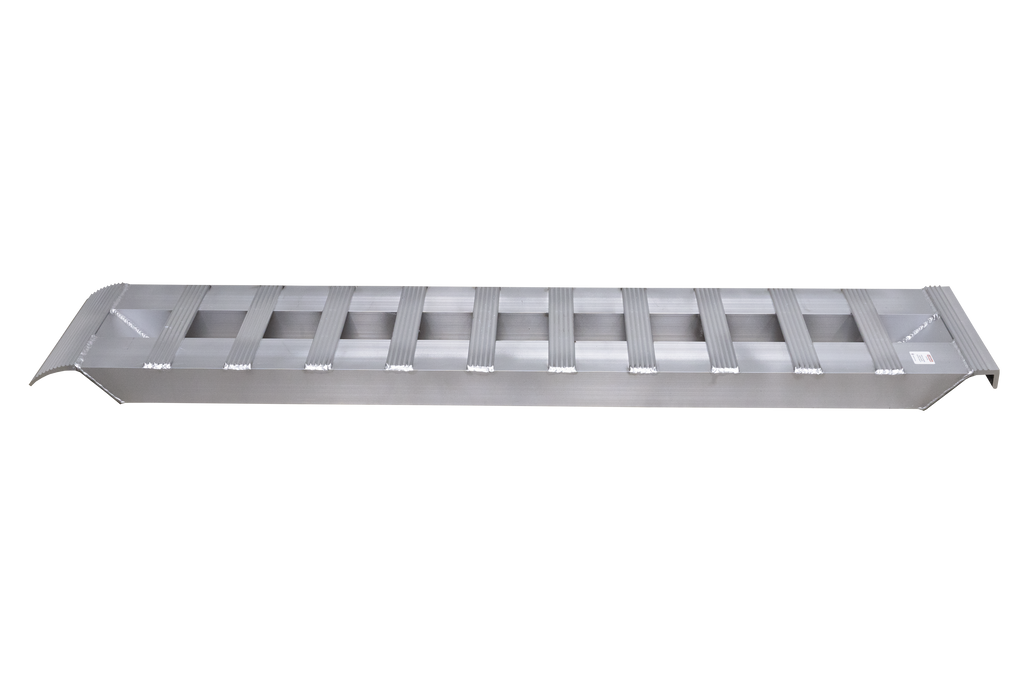

Heavy-Duty Aluminum Loading Ramps

GEN-Y's Heavy-Duty Aluminum Loading Ramps are a multi-piece ramp system for loading vehicles, equipment, or other wheeled loads onto trucks, trailers, or loading docks. They're built specifically for low-clearance, single-vehicle car hauler trailers, with hybrid hook-and-plate ends that hook directly to a car hauler trailer deck. Wide, serrated cross rungs provide traction during loading, including in wet or muddy conditions.

GEN-Y's Aluminum Loading Ramps are available in 6, 7, 8, 10, 12, and 14 foot lengths, sold as a pair. Choose your length based on the deck height you're loading onto and how much of a loading angle your vehicle or equipment can handle; longer ramps give a shallower, easier loading angle for lower-clearance vehicles.

Weight capacity varies by ramp length, ranging from roughly 3,000 to 7,000 pounds per ramp depending on the length ordered, or 6,000 to 14,000 pounds total for the pair. Check the specific length you're ordering for its exact rated capacity, and never exceed the rated weight for your selected ramps, since this rating is per pair, not per axle or per wheel.

GEN-Y's Aluminum Loading Ramps are rated for a minimum deck height of 15 inches and a maximum deck height of 36 inches. Measure your trailer or dock's deck height before selecting a ramp length, since a length that's too short for your deck height creates a steeper, less safe loading angle.

The ramps use hybrid hook-and-plate ends, which hook directly onto a car hauler trailer deck for a secure connection during loading. GEN-Y designed this end style specifically for low-clearance, single-vehicle car hauler trailers. Always secure the ramps properly to the vehicle or trailer before loading, and store them properly on the trailer before transporting, rather than leaving them loose.

The base 6 foot pair of Aluminum Loading Ramps (part number GH-16072) weighs 72 pounds. Weight increases with longer ramp lengths, since a 14 foot ramp uses significantly more aluminum than a 6 foot ramp. Check the specific length you're ordering for its exact shipping weight, particularly if you're planning to lift or store the ramps by hand between uses.

Yes. GEN-Y's Aluminum Loading Ramps are fabricated from aluminum by certified AWS welders and rated for up to 7,000 pounds per ramp, depending on length, while weighing significantly less than a comparable steel ramp. The lighter weight makes the ramps easier to lift, carry, and store without giving up the load rating needed for heavy equipment or vehicles.

Yes. GEN-Y's Aluminum Loading Ramps are manufactured in the United States by certified AWS welders. They're backed by a limited lifetime warranty and tested to exceed applicable weight testing requirements. Always use the ramps only for their intended purpose and never exceed their rated weight capacity, since exceeding the rating isn't covered under the warranty.
