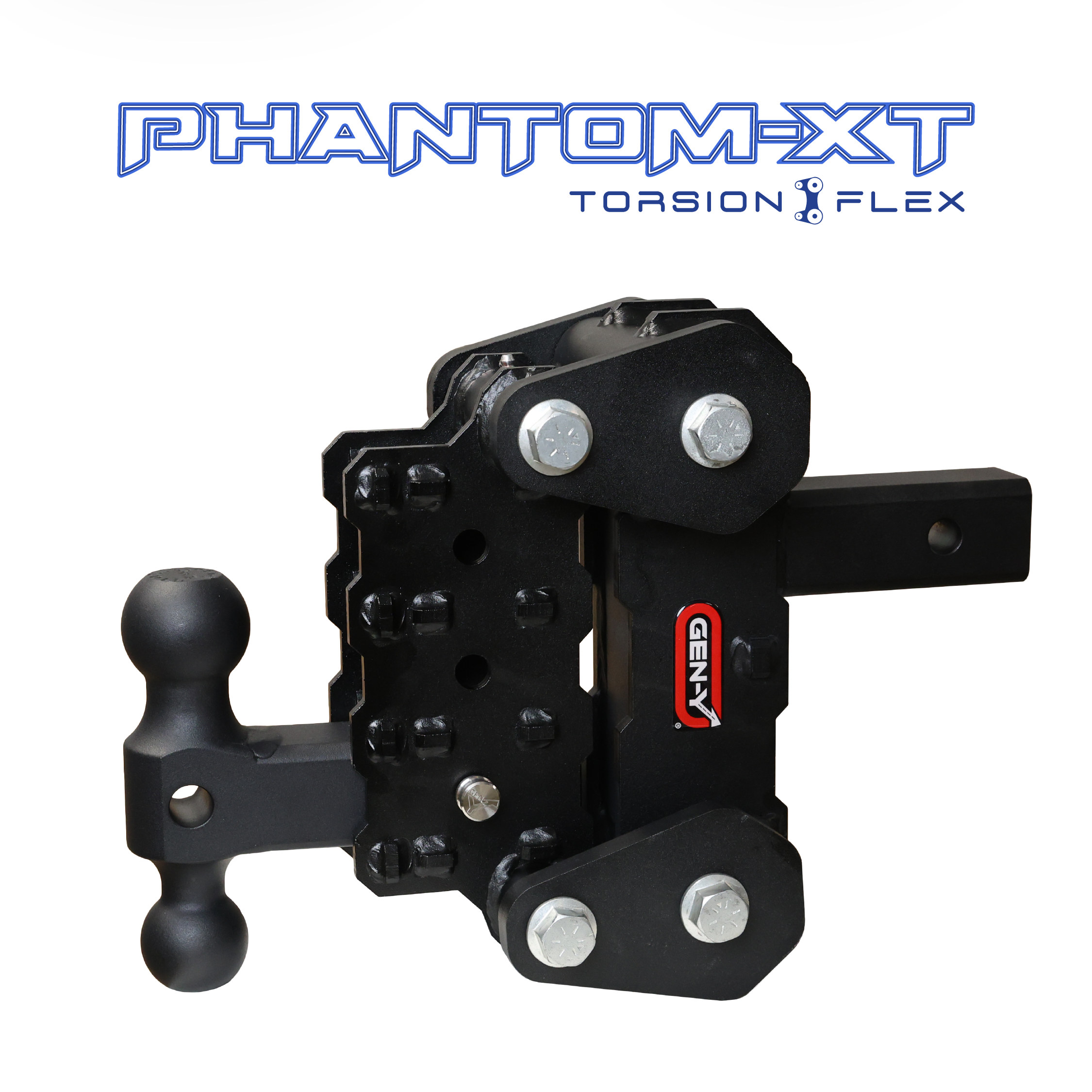

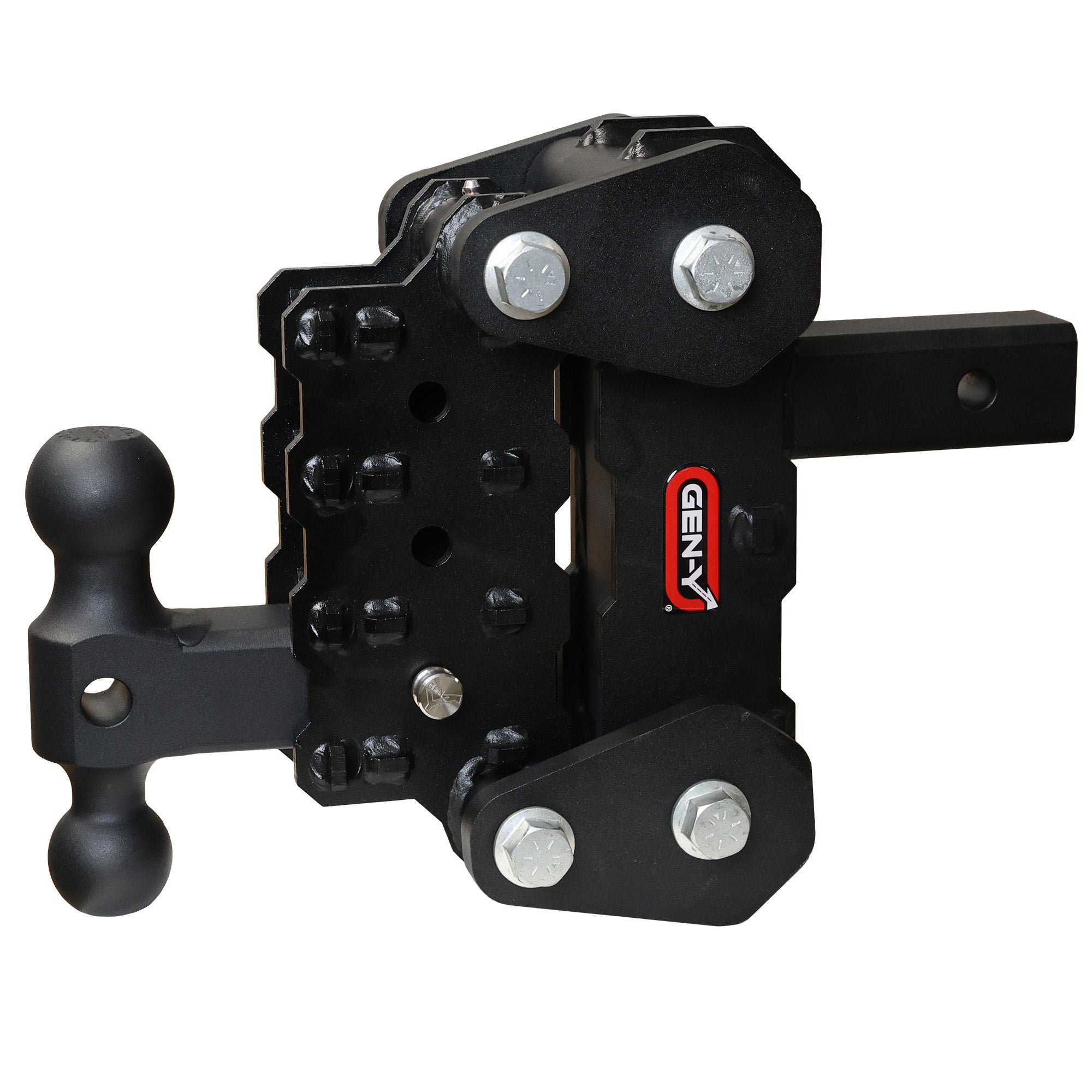

The PHANTOM-XT 10K (Torsion-Flex) Adjustable Drop Hitch (2" Shank)

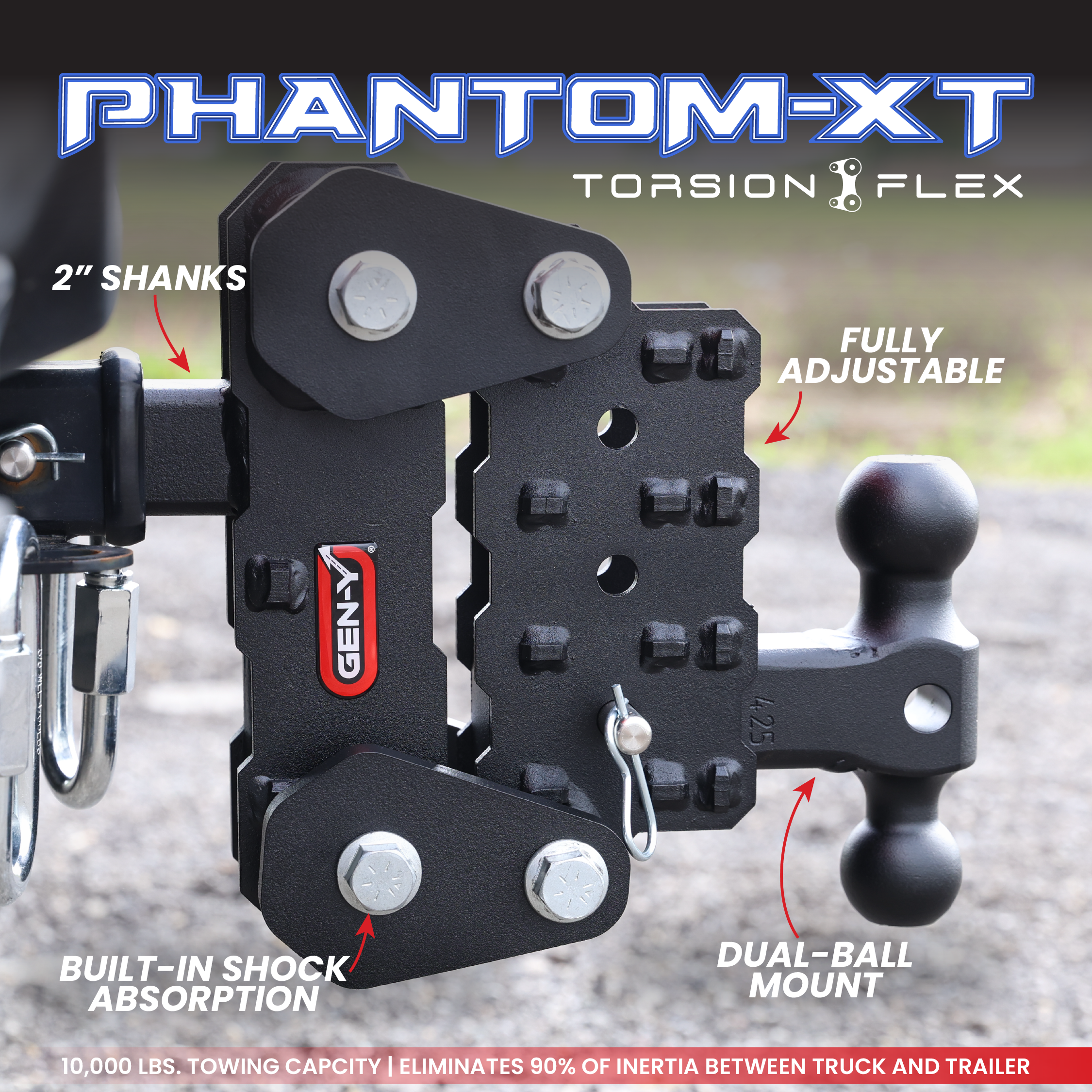

The PHANTOM-XT 10K Torsion-Flex Drop Hitch is a fully adjustable steel drop hitch built on a 2-inch solid shank, rated to tow up to 10,000 pounds. It's built with rubber torsion arms that isolate the trailer connection, cutting inertia transfer to about 10% of a standard rigid hitch, and customers report up to 90% smoother towing as a result. It comes with a dual-ball mount and a fixed 4.25-inch drop or rise.

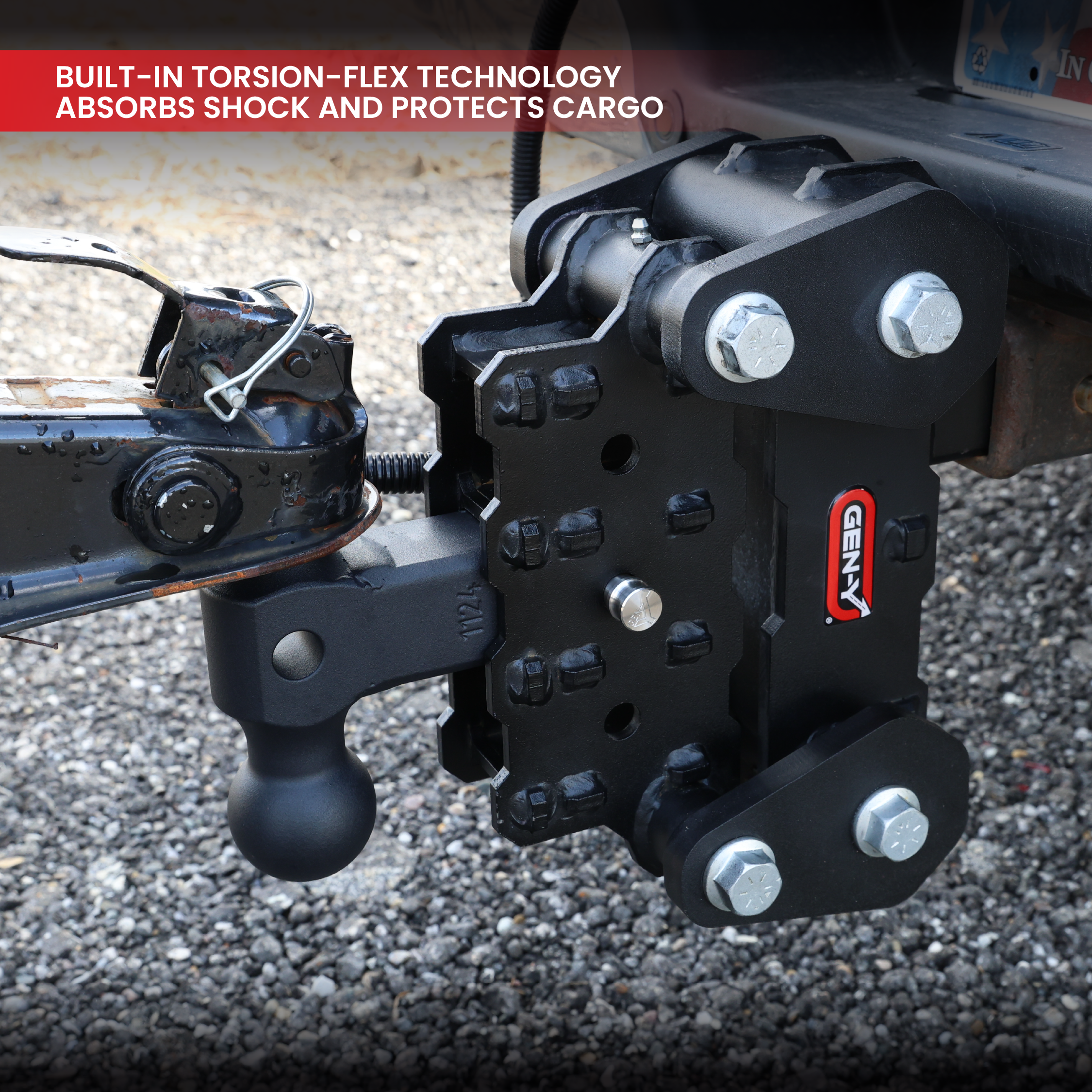

Customers report up to 90% smoother towing with the PHANTOM-XT compared to a standard rigid hitch. The rubber torsion arms cut trailer inertia transfer to about 10% of what a hard connection hitch transfers, which reduces bounce and jolt on rough roads. Reported secondary benefits include improved braking control, reduced sway, and less metal fatigue on the trailer and its contents, though results vary by trailer weight and road conditions.

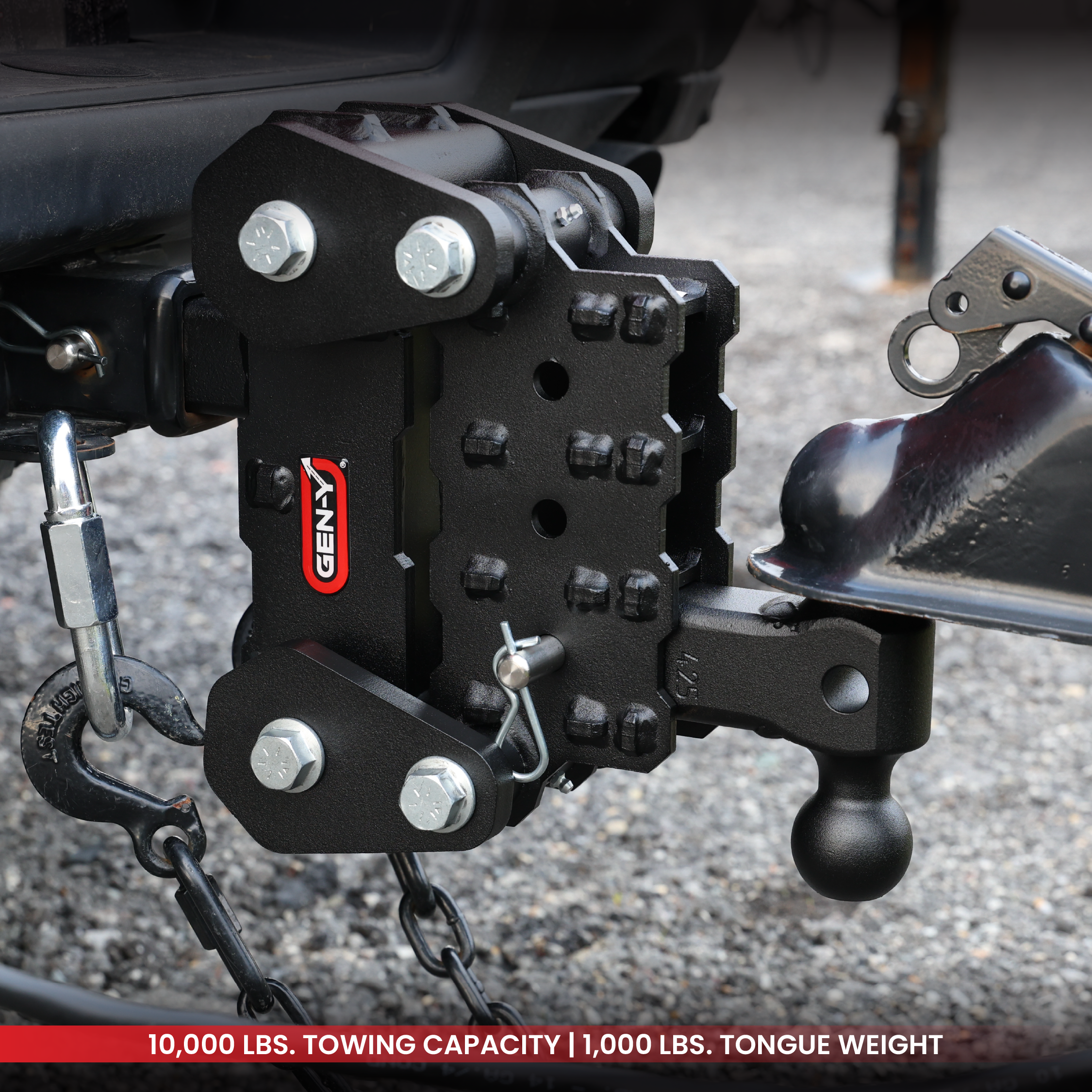

The PHANTOM-XT 10K Drop Hitch is rated to tow up to 10,000 pounds, with an optimal tongue weight range of 400 to 1,000 pounds. It's fabricated from heavy duty steel and tested to exceed SAE J684 weight testing requirements. Tow capacity is limited by the lowest-rated component in your full towing setup, so your vehicle's receiver and hitch ball ratings both need to meet or exceed the load you're pulling.

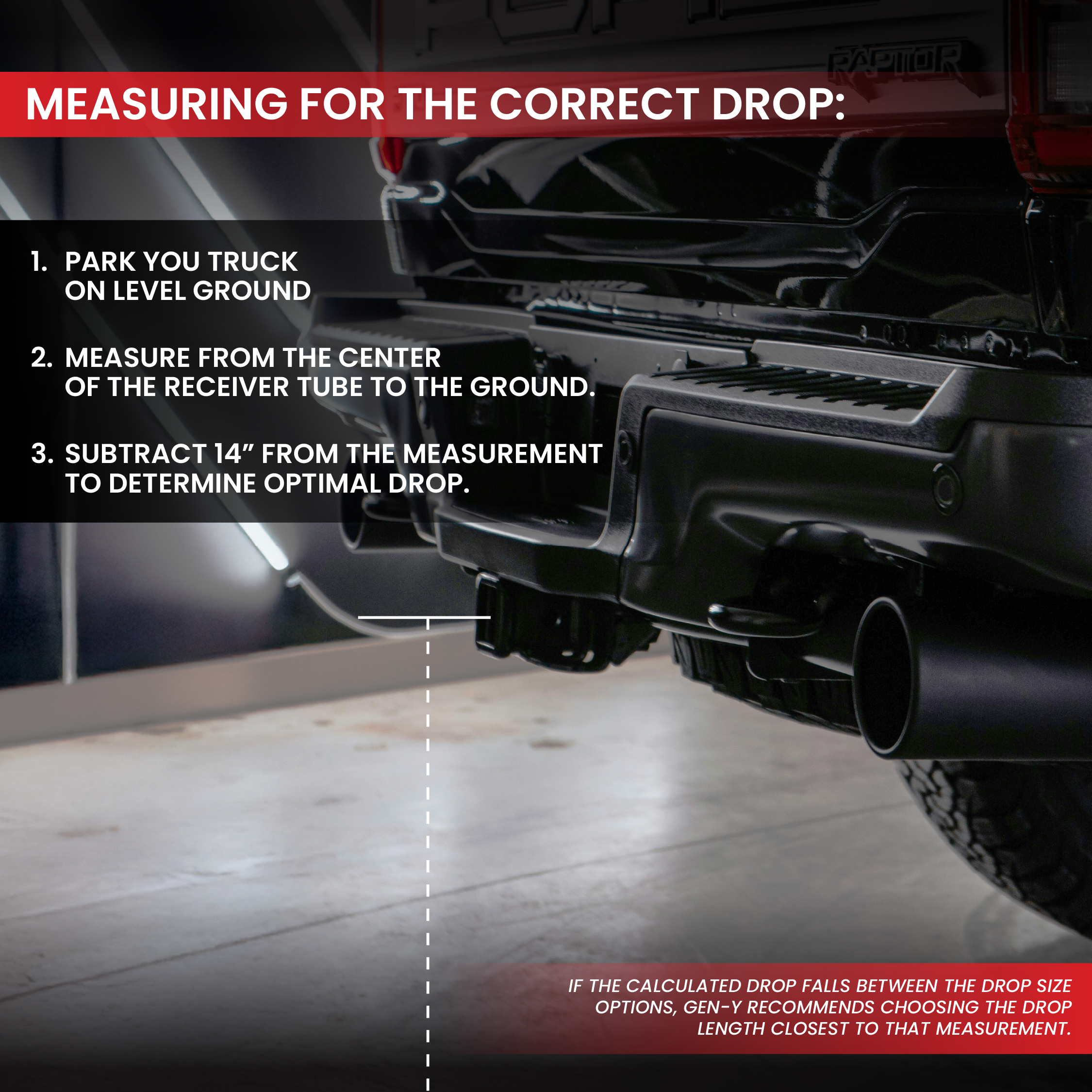

The PHANTOM-XT 10K Drop Hitch has a fixed 4.25-inch drop or rise, unlike GEN-Y's standard PHANTOM-X hitches, which offer multiple selectable drop sizes. This single fixed measurement is built into the Torsion-Flex design rather than being pin-adjustable across several positions, so confirm the 4.25-inch measurement matches your specific height needs before ordering.

The PHANTOM-XT 10K Drop Hitch comes with a dual-ball mount, including a 2-inch and a 2 5/16 inch ball. Unlike GEN-Y's standard PHANTOM-X 10K, which also offers tri-ball and platinum ball mount configurations, the PHANTOM-XT is currently offered only with the dual-ball mount option, reflecting its focus on the Torsion-Flex smoother-ride feature rather than mount variety.

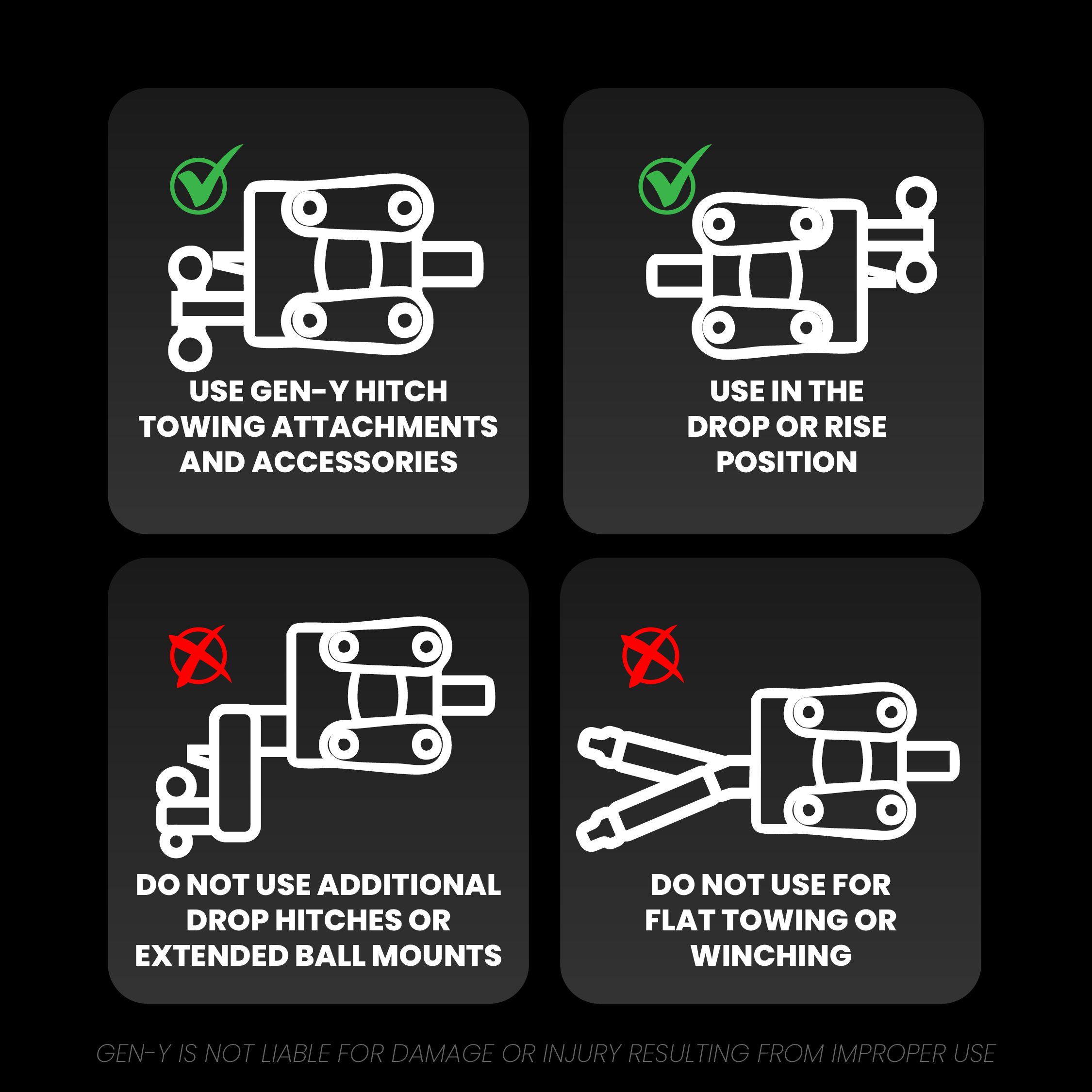

No. GEN-Y specifically states that the PHANTOM-XT Hitch is not recommended for use with weight distribution systems. It's designed around its Torsion-Flex rubber torsion arms for shock absorption rather than a weight distribution hitch's load-leveling function, so the two technologies aren't intended to be combined on this model.

No. GEN-Y states that the PHANTOM-XT Hitch is not recommended for flat towing and is not rated for winching or side-load applications. It's engineered specifically for standard towing within its rated drop and rise position, using its Torsion-Flex rubber arms to isolate shock, not for these additional use cases.

No. GEN-Y specifically states that the PHANTOM-XT Hitch is not recommended for use with non-GEN-Y towing attachments. Pairing it with third-party ball mounts or other attachments not made by GEN-Y falls outside the hitch's tested and rated use case, so stick with GEN-Y's own dual-ball mount for this hitch.

The PHANTOM-XT 10K Drop Hitch (part number GH-104176XT) weighs 66 pounds. This is notably heavier than GEN-Y's standard PHANTOM-X 10K, which weighs 27 pounds, reflecting the additional rubber torsion arm components built into the Torsion-Flex design, which trades some weight for the smoother-ride benefit the technology provides.

Yes. The PHANTOM-XT 10K Drop Hitch is manufactured in the United States from heavy duty steel, sand blasted, and finished with a durable powder coat for corrosion resistance. It's backed by a limited lifetime warranty and tested to exceed SAE J684 weight testing requirements, with warranty claims handled through GEN-Y's return and claim process.
