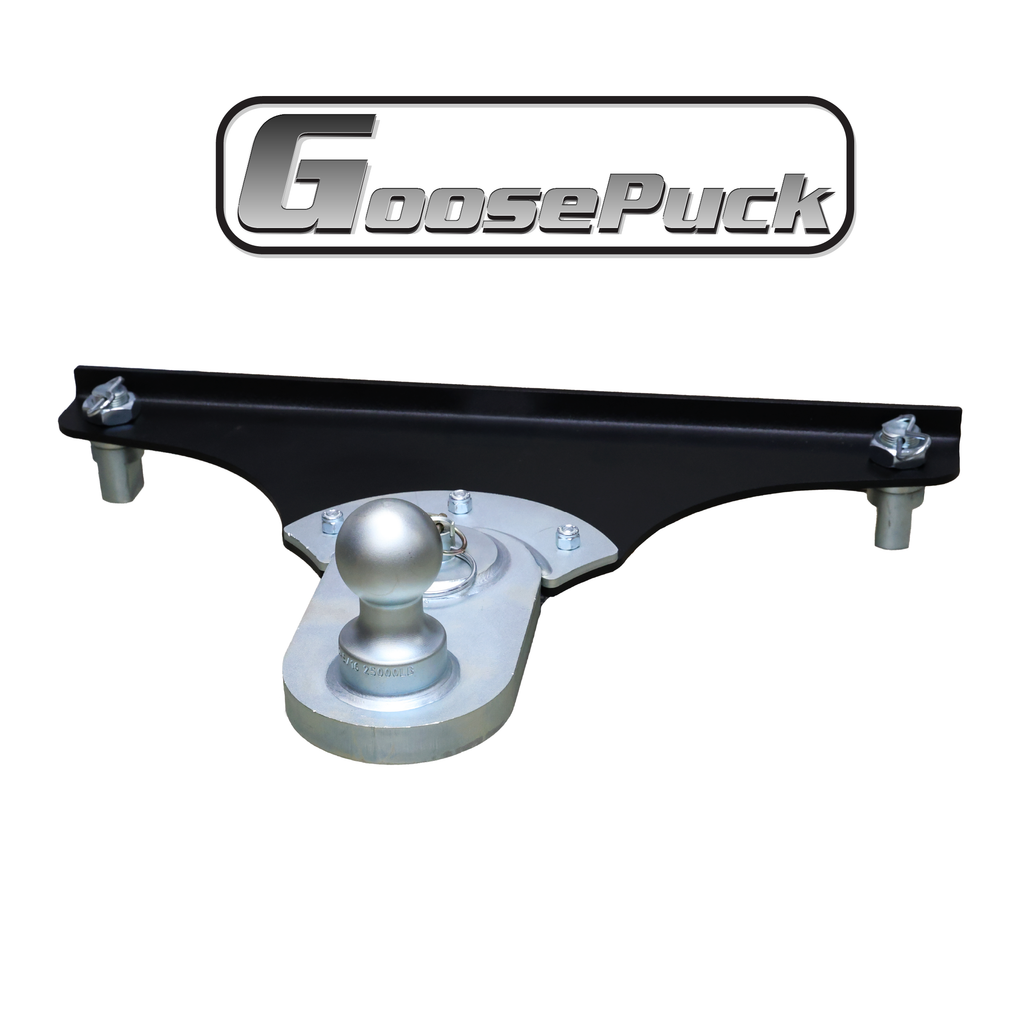

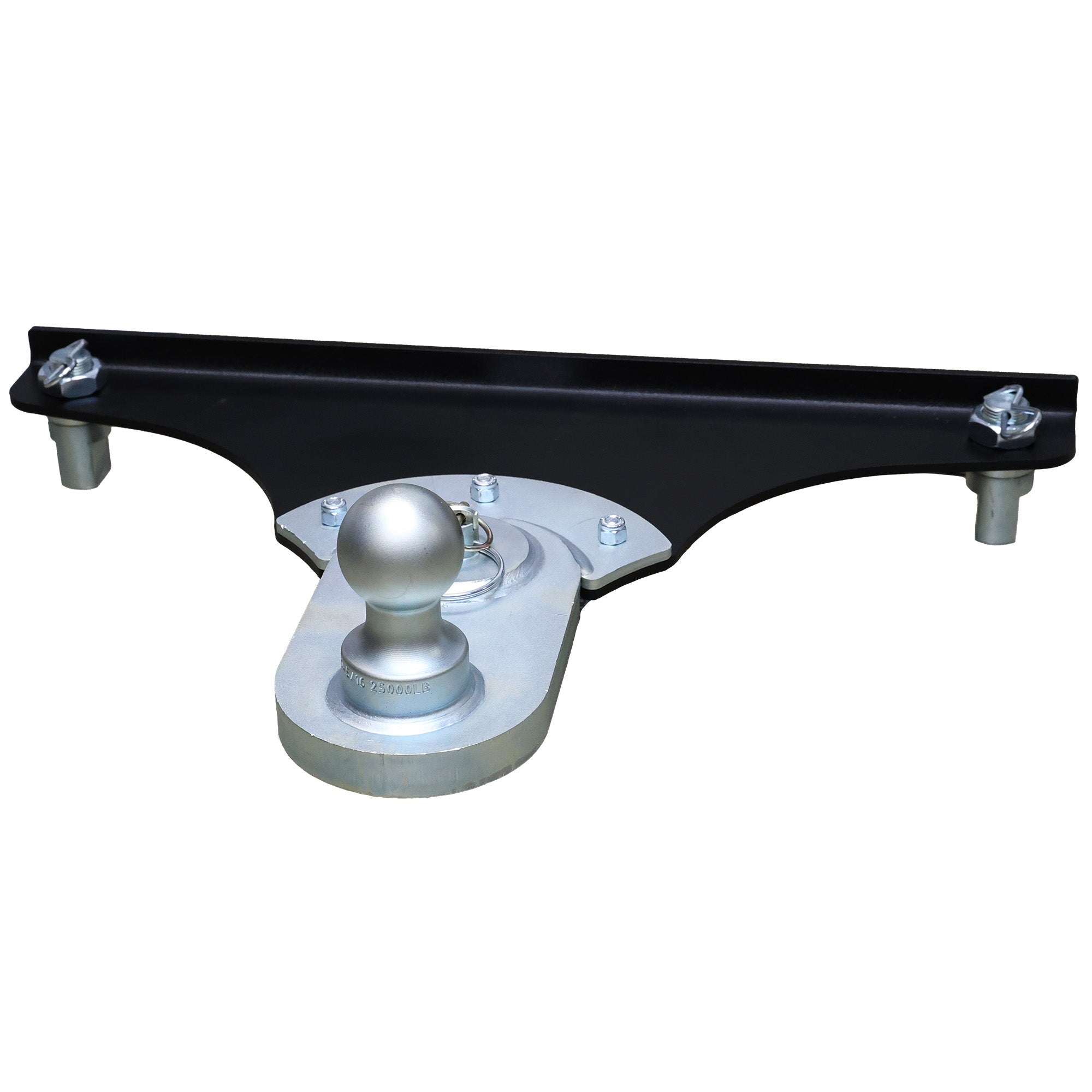

GEN-Y GoosePuck 5" Offset Ball Puck System (GEN 1) product photo (model GH-21005)

GoosePuck 5" Offset Ball Puck System

SKU: GH-21005
Sale price  $429.95 Regular price  $521.97
  • 2 5/16″ Gooseneck Ball
  • Offers a 5″ Offset

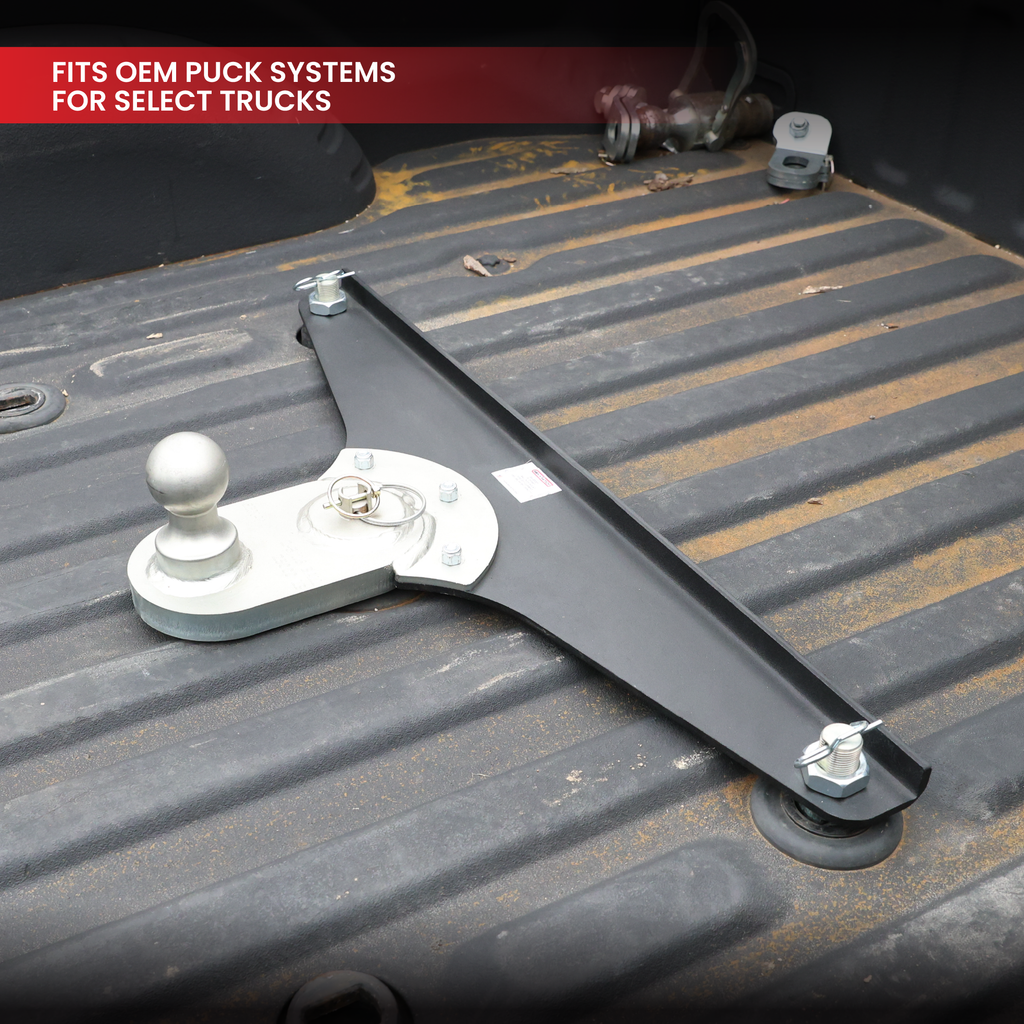

  • 100% Compatible with OEM Puck System (Ford, Chevy, Dodge)(Please check measurements if you own a GM truck. Measurements may vary.)
  • American-Made
  • GoosePuck GEN 2
Truck Make

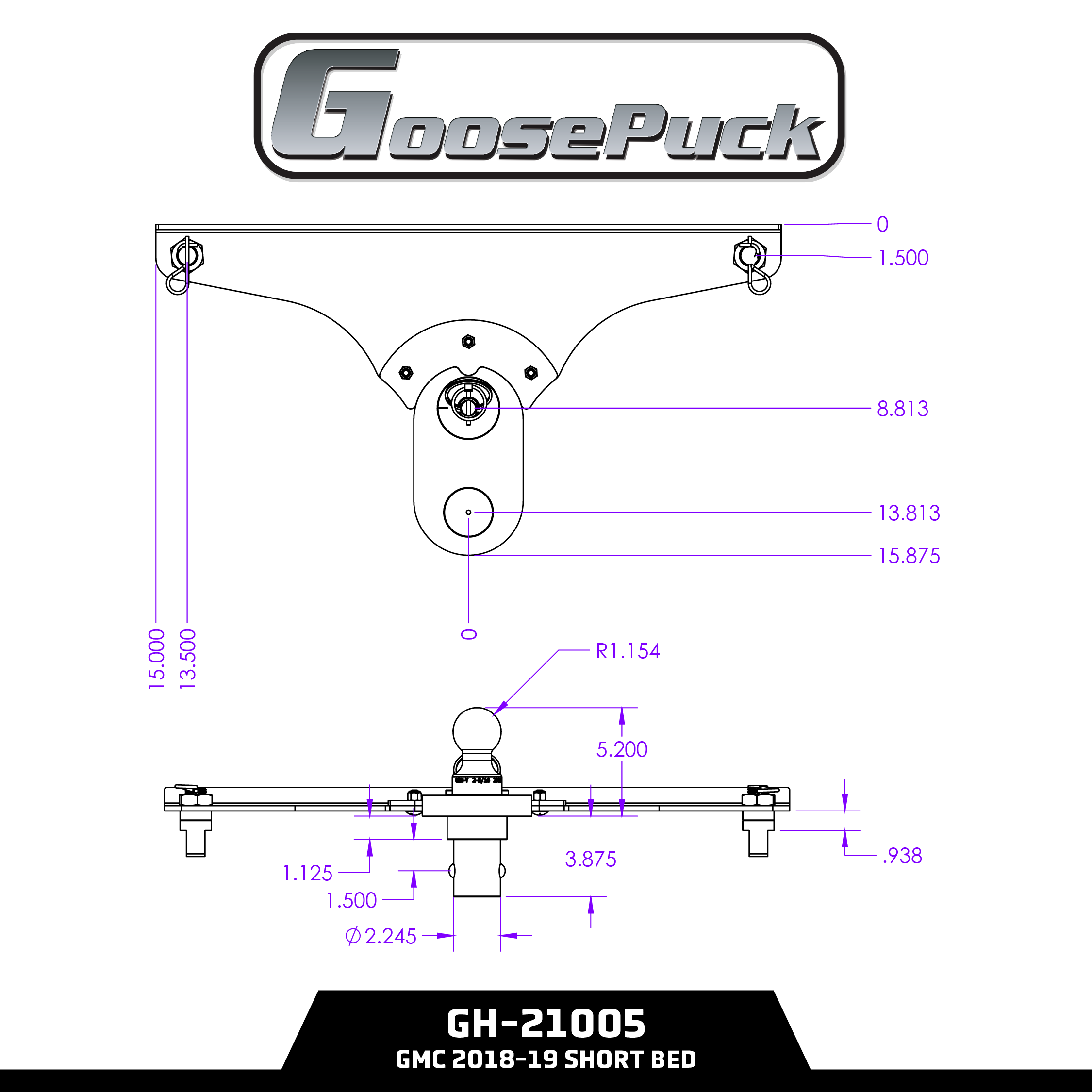

Description: GoosePuck 5" offset ball-puck mount for GM Short Bed 2018-2019 25K Towing, (With EXT Ball Assy and 102345)

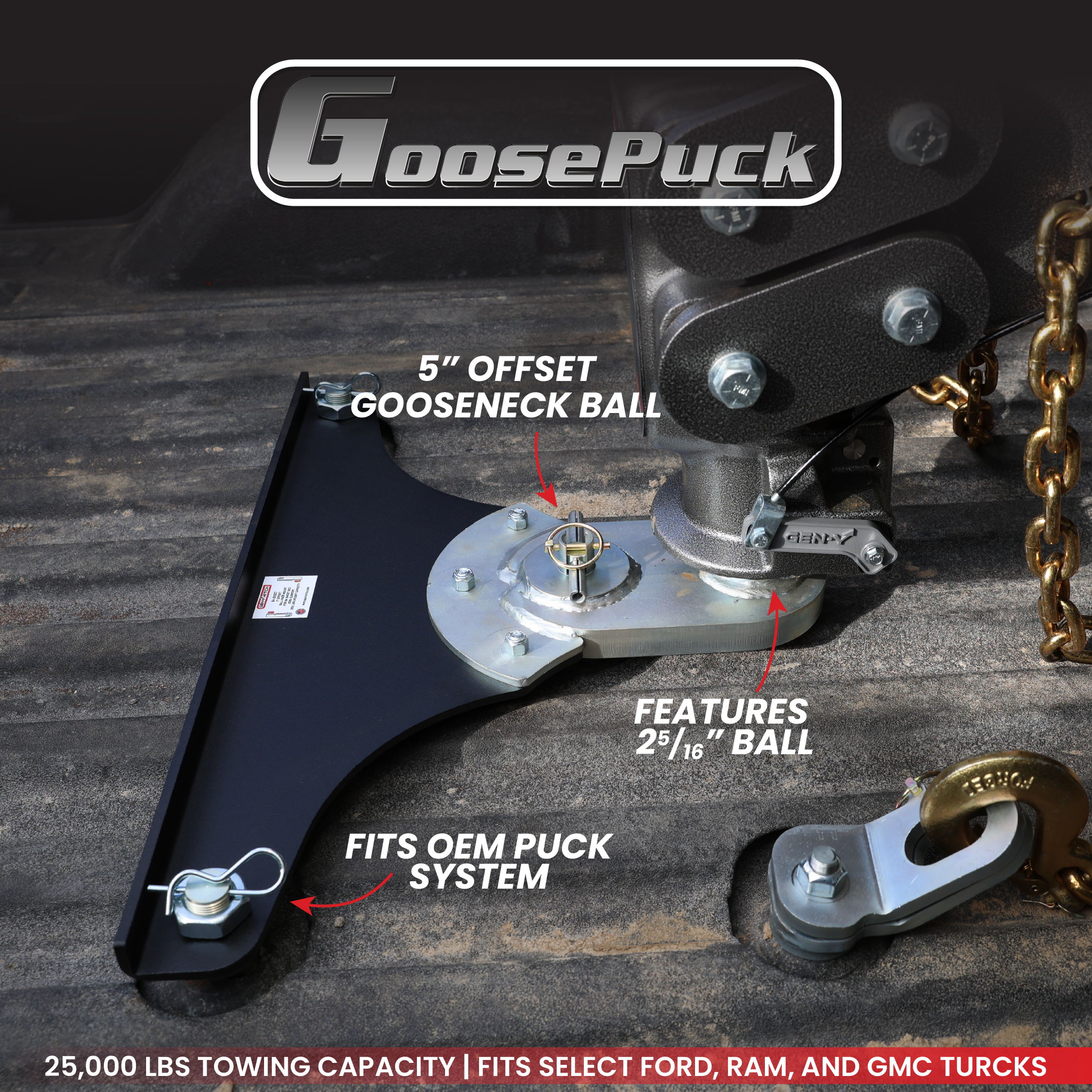

The GEN-Y GoosePuck is a 2 5/16 inch offset gooseneck ball that bolts directly into your truck's existing OEM puck system, rated for up to 25,000 pounds of towing capacity with a 5 inch offset for extra turning clearance. It eliminates the need for a bulky bed-mounted gooseneck hitch, installing with the 3 factory puck bolts torqued to 23 FT LB.

Product Features

  • 2 5/16" Ball Mount
  • Offers 5" Offset
  • 2022 1st Place Winner of "Best New Product" at the NATDA Show
  • Fabricated with Heavy Duty Steel
  • Up to 25K Towing Capacity
  • Available for (Ford 2017-current) (GM 2019) (GM 2021-current) (Dodge)
  • Maintenance Free
  • American Made
Vendor Gen-Y Hitch
Manual User Guides
Warranty https://genyhitch.com/return-claim/
Finish
Made In USA
Material Steel
Part Number GH-21005
Specs Specs
Tongue Weight 6000 lbs
Weight 40 lbs
About this product

The GEN-Y GoosePuck is a 2 5/16 inch offset gooseneck ball that bolts directly into your truck's existing OEM puck system, rated for up to 25,000 pounds of towing capacity with a 5 inch offset for extra turning clearance. It eliminates the need for a bulky bed-mounted gooseneck hitch, installing with the 3 factory puck bolts torqued to 23 FT LB.

Product features

Product Features

  • 2 5/16" Ball Mount
  • Offers 5" Offset
  • 2022 1st Place Winner of "Best New Product" at the NATDA Show
  • Fabricated with Heavy Duty Steel
  • Up to 25K Towing Capacity
  • Available for (Ford 2017-current) (GM 2019) (GM 2021-current) (Dodge)
  • Maintenance Free
  • American Made
Additional information
Vendor Gen-Y Hitch
Weight 40 lbs
SKU GH-21005
Manual User Guides
Warranty https://genyhitch.com/return-claim/
Specifications
Finish
Made In USA
Material Steel
Part Number GH-21005
Specs Specs
Tongue Weight 6000 lbs
Weight 40 lbs

Frequently Asked Questions

What is the GEN-Y GoosePuck?

The GEN-Y GoosePuck is a 2 5/16 inch offset gooseneck ball that bolts directly into your truck's existing OEM puck system in place of a factory ball. It's rated for up to 25,000 pounds of towing capacity and offers a 5 inch offset that adds turning clearance compared to a standard, non-offset gooseneck ball. It eliminates the need for a separate, bulky bed-mounted gooseneck hitch.

How much can the GoosePuck tow?

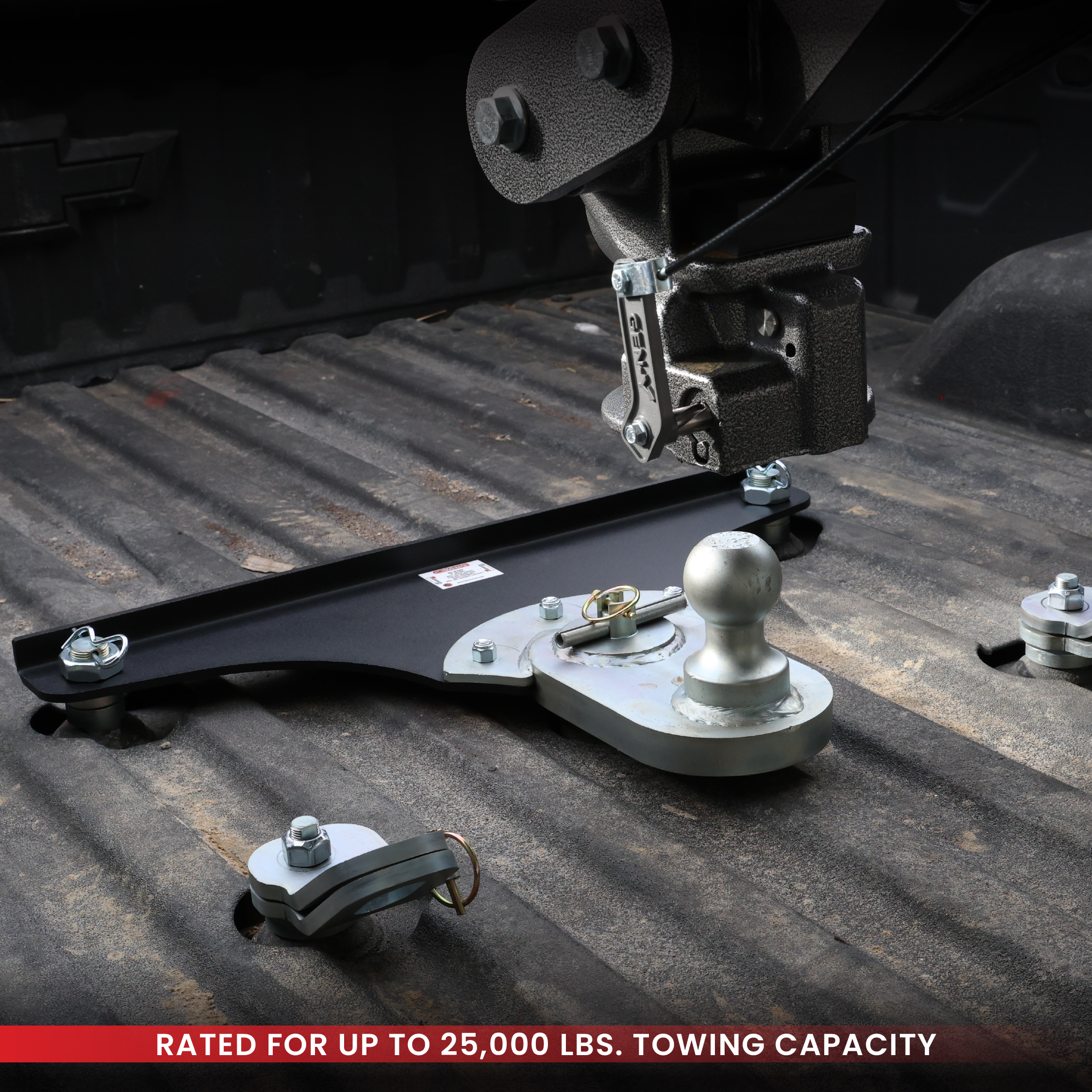

The GoosePuck is rated for up to 25,000 pounds of gooseneck towing capacity. It's fabricated from heavy duty steel and was a 2022 first place "Best New Product" winner at the NATDA Show. As with any towing setup, overall capacity is limited by the lowest-rated component, so confirm your truck's own gooseneck towing rating meets or exceeds what you plan to tow.

What trucks is the GoosePuck compatible with?

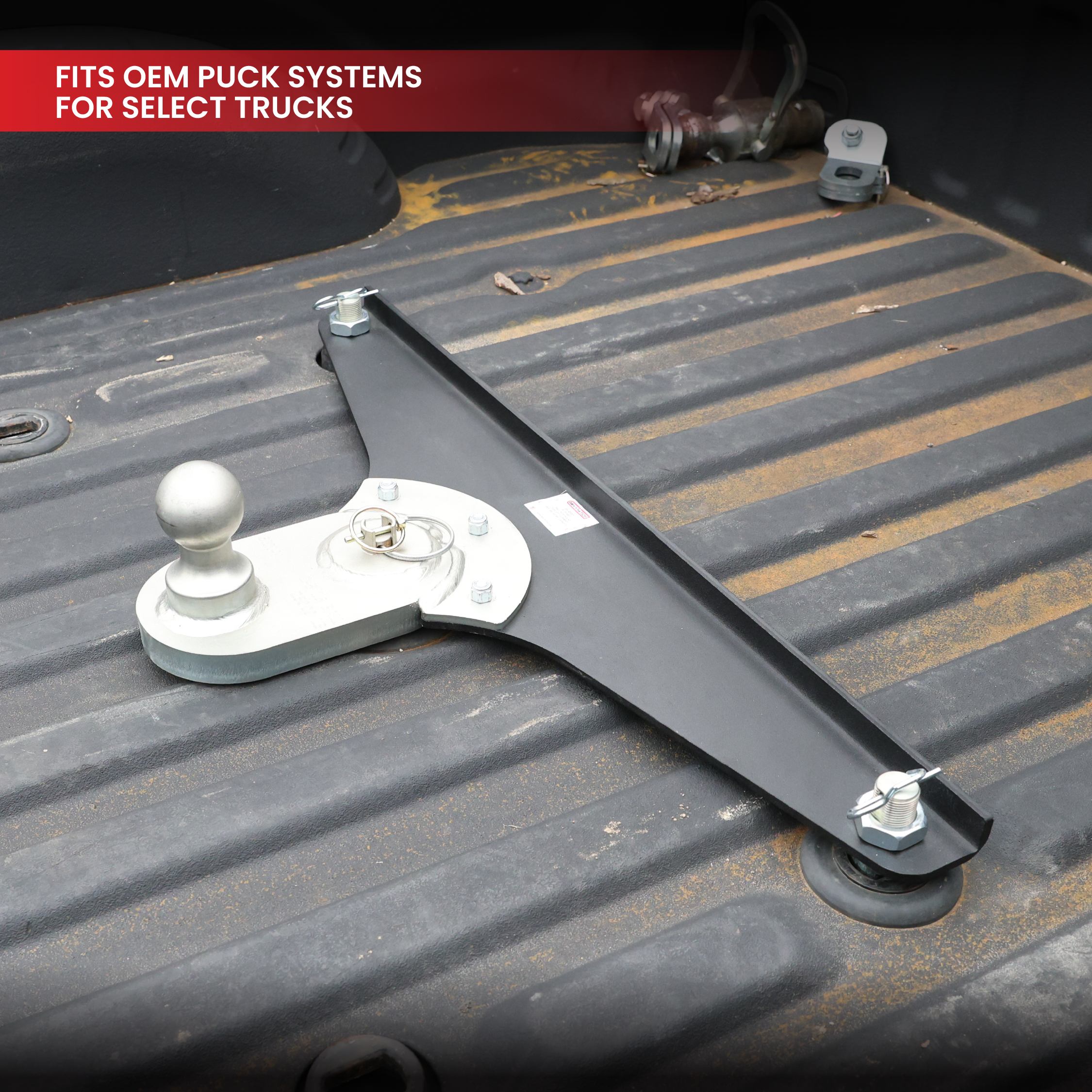

The GoosePuck is 100% compatible with OEM puck systems on Ford, Chevy, and Dodge trucks. If you own a GM truck, GEN-Y recommends checking your bed's puck measurements before ordering, since GM puck spacing can vary and may not match the GoosePuck's fitment in every case; confirming measurements first avoids ordering a ball that won't seat correctly in your factory puck holes.

How do you install the GoosePuck?

The GoosePuck installs using your truck's existing factory OEM puck holes, no drilling or additional hardware needed beyond what's included. All 3 mounting bolts (3/8-16) need to be installed and torqued to 23 ft-lb. If the locking handles don't align properly during installation, slightly loosen the center nut to allow adjustment, position the handles correctly, then retighten the center nut securely.

What ball size does the GoosePuck use?

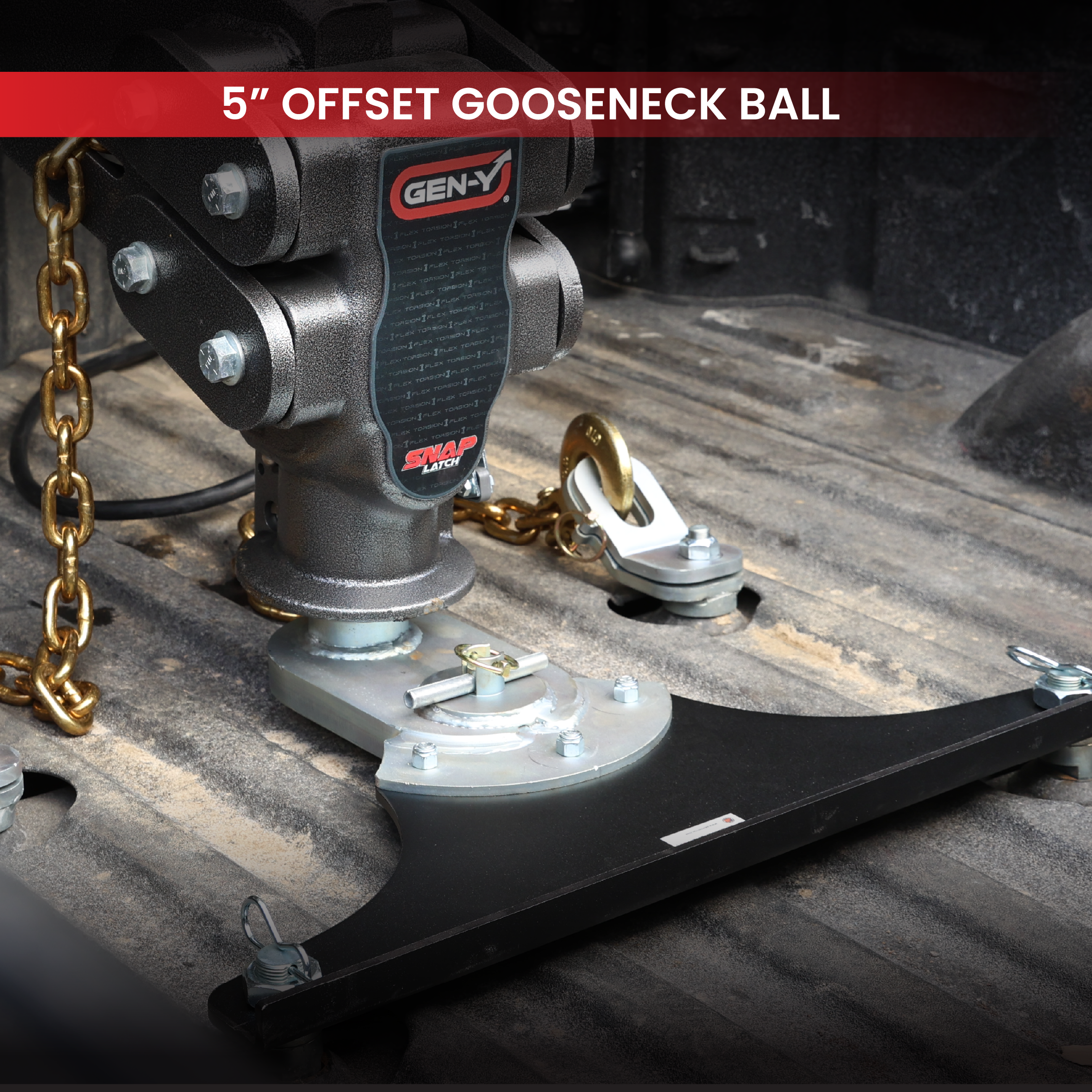

The GoosePuck uses a 2 5/16 inch gooseneck ball, the standard size for most gooseneck trailer couplers. It offers a 5 inch offset from the puck mounting point, which increases clearance during sharp turns compared to a ball mounted directly over the puck, particularly useful on trucks with toolboxes or other bed accessories near the hitch area.

Is there a newer version of the GoosePuck?

Yes. GEN-Y also offers the GoosePuck GEN 2, which builds on the original with rear puck integration for improved clearance around toolboxes, built-in safety chain attachment points, and enhanced adjustability. Both versions use a 2 5/16 inch ball and are rated up to 25,000 pounds, but the GEN 2 is a separate product with its own fitment options for Ford, Ram, and GM trucks.

How much does the GoosePuck weigh?

The GoosePuck (part number GH-21005) weighs 40 pounds. As a compact puck-mounted ball rather than a full bed-mounted hitch, it's significantly lighter and easier to install than a traditional gooseneck hitch assembly, since it replaces only the ball itself rather than an entire rail or under-bed frame system.

Is the GoosePuck made in the USA, and what warranty does it come with?

Yes. The GoosePuck is manufactured in the United States from heavy duty steel. It's protected under patent number 11,585,302 and backed by GEN-Y's limited lifetime warranty. Confirm current warranty terms on GEN-Y's warranty page, since coverage details are updated periodically and may differ slightly from what's stated in older product literature.
