Gooseneck towing mounts a ball in the truck bed, over the rear axle, and the trailer connects through a coupler that locks over that ball rather than jaws around a kingpin or a receiver behind the bumper. Gooseneck setups are common on flatbed, livestock, equipment, and other heavy-duty trailers. They are also used with some RVs through fifth wheel to gooseneck pin box conversions.
A gooseneck setup has two halves, and choosing one is a separate decision from choosing the other. This guide covers how the connection works, how a ball mounts in the truck, what a coupler does, and how GEN-Y's couplers, SPARTAN and VIKING, and balls, GoosePuck, DOMINATOR, and ADVANTAGE, fit into the picture.
Gooseneck Hitches Compared to Fifth Wheel and Bumper Pull Towing
A gooseneck setup mounts a ball in the bed over the rear axle, and the trailer's coupler locks over that ball. A fifth wheel connection mounts in roughly the same spot but connects through a kingpin and jaws instead of a ball, and a bumper pull hitch connects behind the bumper through a standard receiver.
Both gooseneck and fifth wheel connections place the trailer over or near the truck's rear axle, which generally provides a more centralized connection point and can allow tighter maneuvering than a bumper pull setup. Gooseneck setups are the standard choice for flatbed, livestock, and equipment trailers, and they show up more and more on RVs as well.
Gooseneck Balls: Puck Systems and Under-Bed Mounts
The ball is the truck-side half of a gooseneck setup, and gooseneck balls generally mount in two ways: puck-mounted or under-bed. A puck-mounted ball installs into the truck's existing OEM puck system. An under-bed ball mounts its hardware beneath the bed, with the ball typically removable or retractable when not in use. GEN-Y's gooseneck balls are puck-mounted, fitting the OEM puck systems already common on late-model trucks.

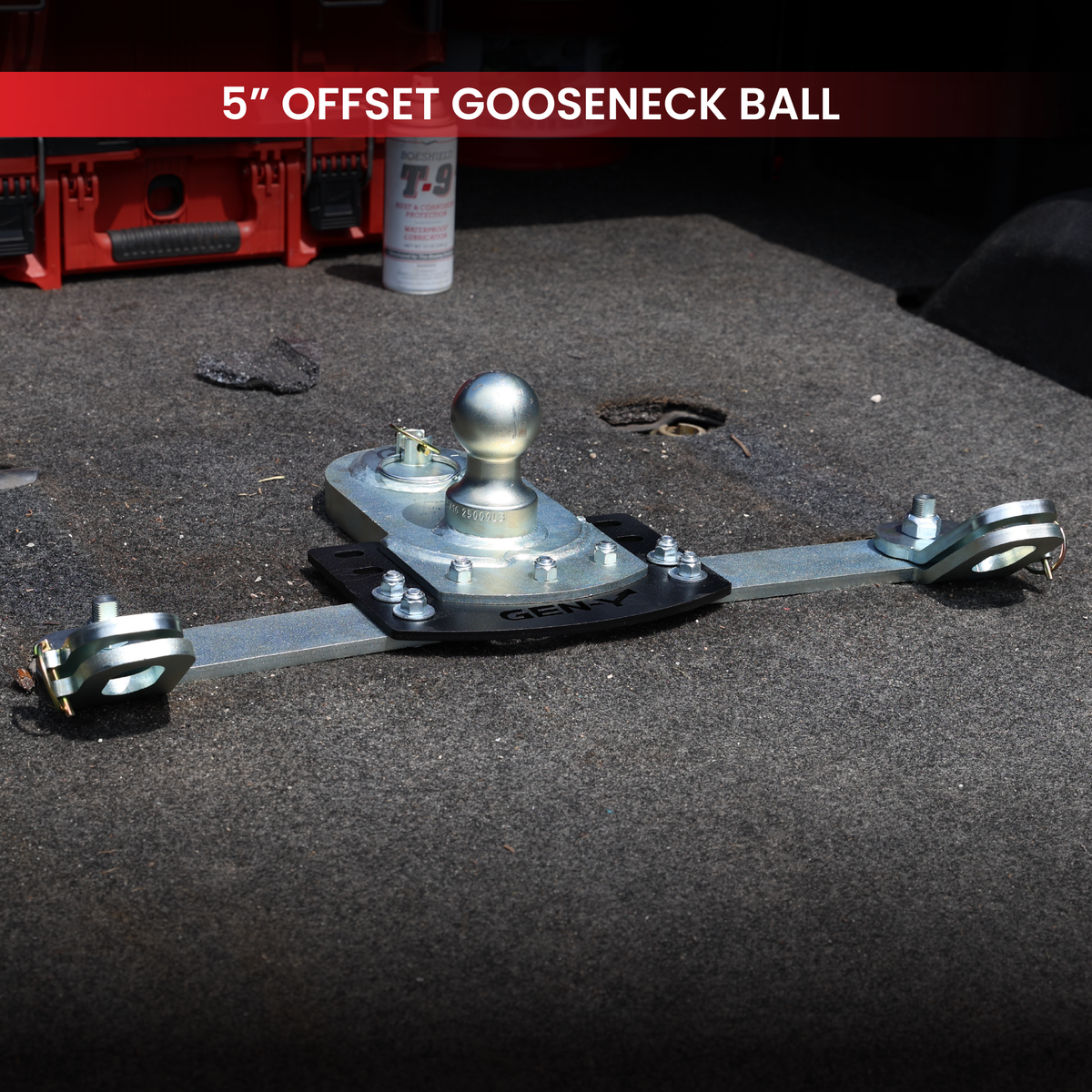

GoosePuck: A Puck-Mounted Ball with a 5 Inch Offset
The GoosePuck 5 inch Offset Ball Puck System is a 2 5/16 inch ball that bolts directly into the truck's existing OEM puck system. It is rated for up to 25,000 pounds and every GoosePuck provides a 5 inch offset, which gives extra turning clearance. It is not a standard ball. It also adds rear puck integration and built-in safety chain attachment points. GoosePuck ships with separate installation guides for Ford, Ram, and GM trucks, and installing it does not require welding or drilling new holes.
DOMINATOR: Torsion-Flex Built into the Ball
The DOMINATOR Torsion-Flex Gooseneck Ball is another puck-mounted ball. It has no offset, but it adds Torsion-Flex shock absorption directly to the gooseneck ball instead of to the coupler, the way the SPARTAN does. It is rated for 25,000 pounds with a 3,500 to 6,500 pound tongue weight range, drops into the OEM puck system on select Ford, RAM, and GMC or Chevrolet trucks, and includes built-in safety chain anchors. GEN-Y does not recommend using the DOMINATOR together with another Torsion-Flex product, such as the SPARTAN, in the same setup.
ADVANTAGE: One Ball Position for Gooseneck or Kingpin Towing
The ADVANTAGE Combo Hitch works with gooseneck couplers on the trailer. It works as both a kingpin connection with jaws and a gooseneck ball connection, and you can swap between the two, so one truck can tow both trailer types. It is rated to 25,000 pounds as a gooseneck, mounts either to an industry-standard rail system or directly to the truck's OEM puck system (Ford or Ram specific), and is maintenance-free with a durable black powder coat. It is not as popular as the dedicated puck-mounted balls, but it is a good fit for anyone who regularly tows both styles.
Gooseneck Couplers and What Torsion-Flex Changes
A gooseneck coupler is the trailer-side half of the connection. It slides into the gooseneck sleeve or tube on the trailer, is attached with pins and set screws, and locks over the truck's ball. In gooseneck towing, coupler and hitch are used to mean the same thing. A standard coupler is a rigid connection with no cushioning built in.
GEN-Y's SPARTAN Torsion-Flex Gooseneck Coupler replaces that rigid connection with rubber torsion arms that cushion the connection between the truck and trailer, cutting the shock that reaches the trailer frame and cargo. Owners commonly report less chucking and bucking as a result, on top of a smoother ride overall, and hotshot haulers who tow daily report reduced tire wear and fuel savings. The SPARTAN is protected under multiple patents including US9505281B1, and GEN-Y tests its gooseneck products to exceed the SAE J2638 testing requirements used across the towing industry.
Coupler Specs: SnapLatch, Pin, and Finish
Both the SPARTAN and the VIKING use a 2 5/16 inch self-latching SnapLatch coupler, which resets automatically after release for a consistent connection every hookup. The SPARTAN ships with a 3/4 inch pin and a release, and is finished in a zinc-rich epoxy primer and durable powder coat. Round tube versions come standard with angled pin holes, so anyone with straight pin holes should call GEN-Y at (574) 218-6363 before ordering. Because the SPARTAN coupler sits taller than a standard coupler, measure from the bottom of the current coupler to the retaining pin to confirm it clears the trailer deck. Gooseneck hole patterns vary significantly between trailer brands, so check the trailer's pattern before ordering.
Matching Towing Capacity to Your Trailer
The rule that applies to every towing setup applies here too: match the coupler and ball ratings to the trailer's actual loaded weight, not to the truck's maximum rating, since the whole system is only as strong as its weakest rated part. For the basics of hitch class, receiver size, and rating tags, see the Hitch Selection Guide.
GEN-Y's current gooseneck coupler and ball lineup tops out at 30,000 pounds of towing capacity. Some other manufacturers sell under-bed gooseneck heads rated well above that, up to 35,000 or even 40,000 pounds for extreme-duty applications, but those sit outside GEN-Y's current catalog.
Within GEN-Y's own lineup, tongue weight range matters as much as the headline towing figure. The SPARTAN comes in 4,500 pound tongue weight with 25,000 pound towing, and 6,500 or 8,500 pound tongue weight with 25,000 or 30,000 pound towing. GEN-Y specifies a tongue weight range for each model, and the smoothest ride from Torsion-Flex is achieved when actual tongue weight sits inside that range, not just under the maximum towing capacity.
Choosing a Coupler: SPARTAN vs. VIKING
A customer choosing a gooseneck coupler is deciding between two products. The SPARTAN adds Torsion-Flex shock absorption, in round or square 4 inch tube, rated from 25,000 to 30,000 pounds depending on configuration. The VIKING Static Gooseneck Coupler with SnapLatch is a static design without Torsion-Flex, built as a simpler, lower-cost option. Its standard version is rated to 30,000 pounds of towing and 8,500 pounds of tongue weight, with a 6 inch offset version at 25,000 pounds and a 9 inch offset version at 21,000 pounds that move the coupling point to help clear obstructions in the truck bed.
If ride quality and cargo protection are the priority, the SPARTAN is the choice. If a fixed connection at a lower cost is enough, the VIKING covers it.
Choosing a Ball: GoosePuck, DOMINATOR, ADVANTAGE, or an Under-Bed Ball
The ball decision is separate. The GoosePuck is a puck-mounted ball with a 5 inch offset for turning clearance. The DOMINATOR is a puck-mounted ball with Torsion-Flex built in and no offset, and it is best used instead of, not alongside, a Torsion-Flex coupler. The ADVANTAGE is the choice for towing both gooseneck and kingpin trailers from one truck. An under-bed mounted ball, available from other brands, mounts beneath the bed with a removable or retractable ball, and is a different product category than GEN-Y's puck-based lineup.
Shop gooseneck towing products
See the full range of gooseneck couplers and balls in the Gooseneck Towing collection.
Finding Dealers, Support, and Buying Direct
GEN-Y's dealer finder searches by zip code or city to show authorized dealers nearby. For direct help matching a coupler or ball to a specific truck and trailer, GEN-Y's team can be reached at (574) 218-6363, by email at sales@genyhitch.com, or through the contact form.
Buying Direct When a Dealer Isn't Close By
Not every area has a nearby authorized dealer. When that is the case, ordering directly from genyhitch.com is the straightforward option, since GEN-Y ships anywhere in the US, and calling ahead of an order is worth it for anyone unsure which model fits their truck's puck system or their trailer's gooseneck sleeve.
