Bumper pull towing is one of the most common trailer setups for trucks and SUVs. The trailer coupler drops onto a hitch ball mounted behind the vehicle, typically through a receiver hitch, with ball sizes commonly 2, 2.5, or, on select heavy-duty applications, 3 inches. It is the towing method behind boat trailers, utility trailers, campers, and work trailers across the country, and nearly all of it depends on one part doing the real work: the hitch.
This guide covers what a drop hitch actually does, how to size the drop and set the ball height, how tongue weight affects a safe tow, and how GEN-Y's bumper pull lineup compares, from 5,000 up to 32,000 pounds of towing capacity.
How Is Bumper Pull Different from Gooseneck or Fifth Wheel Towing?
A bumper pull hitch connects behind the tow vehicle's rear bumper through a standard receiver. Gooseneck and fifth wheel setups work differently. A gooseneck connection mounts a ball in the truck bed over the rear axle, and a fifth wheel connection uses a kingpin and hitch in the bed. Both typically handle heavier trailers than a bumper pull setup, but they need bed-mounted hardware rather than a receiver hitch, and they are a separate towing category.
GEN-Y builds dedicated products for each. Bumper pull is the widest lineup, led by the MEGA-DUTY and BOSS, which are the two most popular. Gooseneck setups use a trailer-side coupler such as the SPARTAN or VIKING and a truck-side ball such as the GoosePuck or DOMINATOR. The EXECUTIVE line covers both fifth wheel and fifth wheel to gooseneck connections.
What Is a Drop Hitch and What Does It Actually Do?
A drop hitch is an adjustable ball mount that changes the height between the truck's receiver and the trailer coupler. It lowers or raises the connection point so the trailer sits level behind the truck instead of tilted nose up or nose down. One adjustable drop hitch can serve several trailer heights, which offers real versatility to a truck that tows more than one kind of trailer.
Drop Hitch vs. Rise Hitch: Which One Do You Need?
A drop hitch lowers the ball below the receiver. That is the more common need, especially on lifted trucks and larger pickups where the receiver sits well above a standard trailer coupler. A rise hitch does the opposite, raising the ball above the receiver, which comes up more often on lowered trucks or with taller utility trailers. GEN-Y's MEGA-DUTY line is designed and tested for use in either the drop or rise position. Some Torsion-Flex products, such as the GLYDER and VOYAGER, are not recommended in the rise position, so check the product page. The direction you need comes down to a simple height comparison, covered in the measuring section below.
The Parts of a Drop Hitch: Shank and Ball Mount
Two parts do the work in a drop hitch. The shank slides into the truck's receiver tube and is secured with the included high-capacity hitch pin and twist clip. The ball mount sits on the other end and holds the hitch ball, and on an adjustable drop hitch, that ball mount is what moves up or down to set the correct height.
The coupler is not part of the drop hitch. It is the trailer's connection point, the part that drops over the hitch ball and locks in place. Because the ball mount adjusts, an owner can change ball height for a different trailer without buying a second hitch, which is the main reason drop hitches exist.
How to Measure for the Correct Drop
Getting the drop right takes two quick measurements, both on level ground. The first picks the hitch. Measure from the middle of the truck's receiver to the ground, then subtract 14 inches. The nearest GEN-Y drop size to that number is the optimal drop for your truck.
The second sets the ball height for the trailer you are towing. Measure from the ground to the top of the receiver opening, then measure from the ground to the bottom of the trailer coupler with the trailer sitting level, ideally loaded to its normal towing weight. Receiver height minus coupler height is the drop or rise needed, and that difference tells you which slot to put the ball mount in. If the coupler sits lower than the receiver, the ball goes below the receiver for a drop. If the coupler sits higher, the same number becomes the rise needed instead.
How Tongue Weight Shapes a Safe Tow
Tongue weight is the downward force the trailer coupler puts on the hitch ball, measured in pounds. For bumper pull trailers, the widely used industry target is 10 to 15 percent of the loaded trailer's total weight. A 6,000 pound trailer, for example, should land somewhere between 600 and 900 pounds of tongue weight once it is loaded and ready to go.
Too little tongue weight and the trailer tends to sway or fishtail at speed. Too much and the rear tires of the tow vehicle take on extra load, which can push the rear end around and make steering and braking less predictable. Neither is a small issue at highway speed.
Every GEN-Y hitch lists its own tongue weight rating next to its towing capacity, for example 1,500 pounds on the MEGA-DUTY 10K and 3,500 pounds on the MEGA-DUTY 32K. That rating is a ceiling on what the hitch can handle, not a target. Always follow the trailer and tow vehicle manufacturer's specifications when they differ.
Hitch Classes, Weight Ratings, and What the Numbers Mean
Receiver hitches across the industry are commonly grouped into classes, roughly: Class III up to about 6,000 pounds weight-carrying or 10,000 pounds with weight distribution, Class IV up to about 10,000 to 12,000 pounds weight-carrying or 14,000 pounds with weight distribution, and Class V up to about 12,000 to 20,000 pounds or more weight-carrying or 17,000 to 24,000 pounds with weight distribution, though exact figures vary by manufacturer and receiver size.
GEN-Y rates its bumper pull products directly in pounds rather than by class letter, which is where names like 10K, 16K, 21K, and 32K come from. Each number is the hitch's own rated towing capacity, also called gross trailer weight (GTW), and the receiver, ball, and coupler need to be rated to match. For a full breakdown of Class I through Class V, receiver sizes, and how to read a rating tag, see the Hitch Selection Guide.
Weight-Carrying vs. Weight Distribution Setups
A weight-carrying hitch, which is how a standard MEGA-DUTY or BOSS is used, carries the full tongue weight at the receiver. A weight distribution setup adds spring bars that transfer some of that tongue weight forward to the truck's front axle and back onto the trailer's own axles, which helps when tongue weight is high or when a loaded trailer makes the truck squat too much at the rear. GEN-Y's Weight Distribution Shank is an attachment that makes MEGA-DUTY and BOSS hitches compatible with almost any weight distribution system on the market.
Mounting a Drop Hitch the Right Way
Once the correct drop size is known, mounting the hitch follows the same basic order every time. The shank slides into the receiver tube, the pinholes line up, and the included high-capacity pin and twist clip secure it. Standard twist clips are designed to be extremely sturdy but not to deter theft, which is why a separate locking security pin is needed. Set the ball mount in the slot you measured for and secure it with the supplied pin. From there, back the truck up so the trailer coupler lowers directly onto the ball, latch the coupler, and attach the safety chains and the trailer's breakaway cable, following the hitch and trailer manufacturer's instructions. Cross the chains under the coupler where appropriate so they can help support the trailer tongue if the coupler becomes disconnected. A quick check with a level confirms the trailer is riding the way it should before pulling onto the road.
Stabilizer Kits: When You Need One and Why
Longer drop hitches flex more under load, simply because the ball mount extends farther out from the receiver. GEN-Y recommends a stabilizer kit on longer drops and includes one automatically on the longest drop sizes, with the exact sizes varying by model. For example, the MEGA-DUTY 16K recommends one at a 12.5 inch drop and includes one above that. The kit cuts down on side to side movement and rattle inside the receiver, which makes for a tighter, more secure connection, especially over rough roads or longer drives.
Shop bumper pull hitches
See the full range of bumper pull hitches, from 5,000 to 32,000 pounds, in the Bumper Pull Towing collection.
The GEN-Y Bumper Pull Lineup
MEGA-DUTY and BOSS are the most popular, but they are not the whole lineup. Here is how the rest of the bumper pull range fits together.
- MEGA-DUTY, 10K to 32K: the standard adjustable drop hitch, built for adjustability.
- BOSS, 10K to 32K: the same adjustable design with Torsion-Flex shock absorption built in.
- PHANTOM 5K: a lighter-duty adjustable drop hitch for half-ton trucks and SUVs.
- PHANTOM-X, 10K and 16K: a stacked tube adjustable drop hitch with a shorter drop range.
- PHANTOM-XT 10K: an adjustable hitch with Torsion-Flex shock absorption, rated for 10,000 pounds.
- GLYDER 7K: a lightweight Torsion-Flex ball mount for teardrop trailers, small campers, landscape trailers, and boats.
- VOYAGER: a Torsion-Flex cargo carrier hitch for coolers, bikes, and camping gear.
MEGA-DUTY vs. BOSS: Choosing the Right GEN-Y Drop Hitch

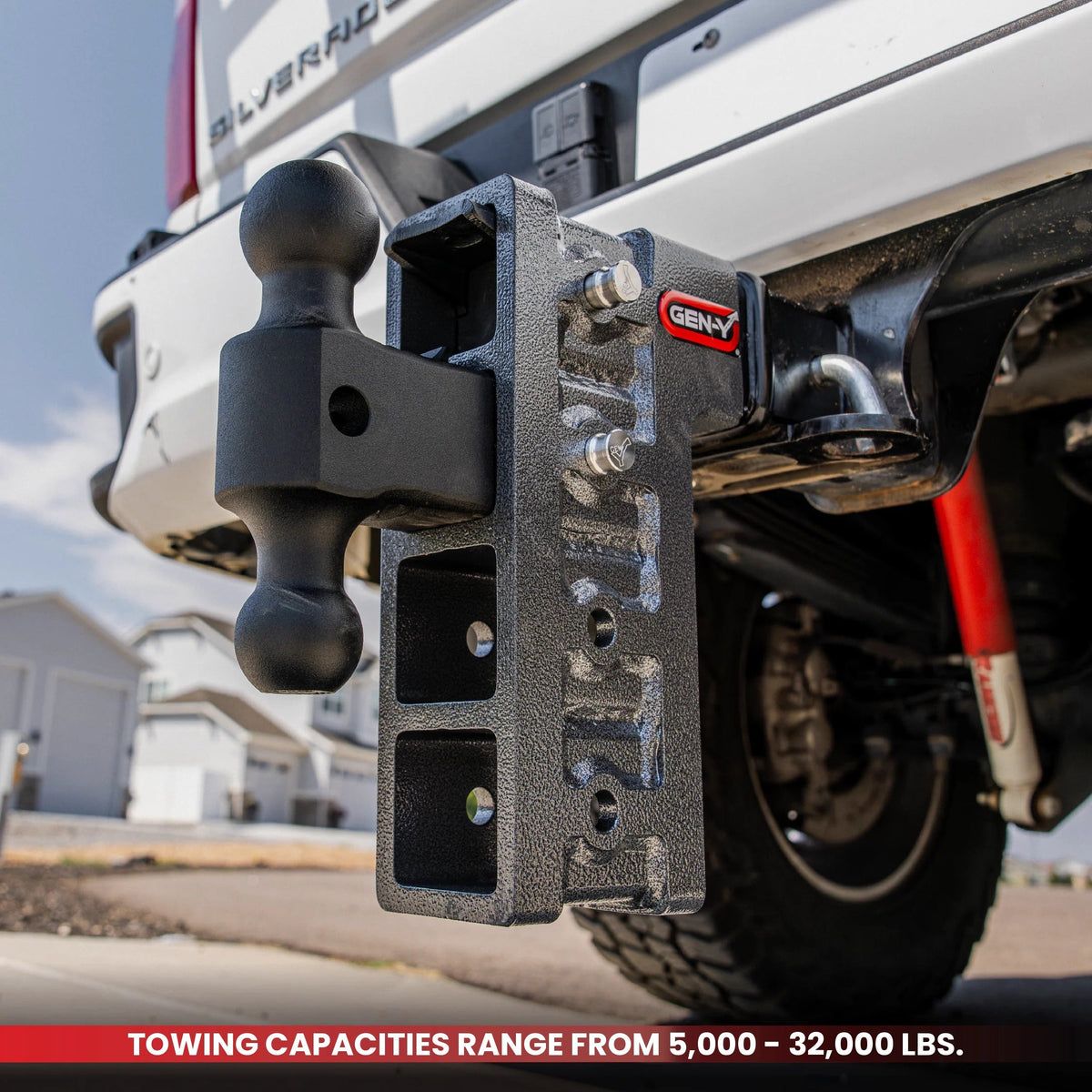

MEGA-DUTY is GEN-Y's standard adjustable drop hitch line, built from heavy-duty steel and available in capacities from 10,000 pounds in the MEGA-DUTY 10K Drop Hitch up to 32,000 pounds in the MEGA-DUTY 32K Drop Hitch. It offers adjustable drop and rise, dual-ball versatility, and a wide range of configurations for boat, utility, RV, and work trailers.
BOSS adds GEN-Y's patented Torsion-Flex technology to the adjustable drop hitch design. Built-in rubber torsion arms help absorb road shock and reduce the amount of impact transferred through the hitch and trailer. Owners of Torsion-Flex products commonly report a noticeably smoother tow as a result. BOSS is available in 10K, 16K, 21K, and 32K capacities. The BOSS 16K Torsion-Flex Drop Hitch matches the 16,000 pound rating of the MEGA-DUTY 16K Drop Hitch, which makes it the most direct comparison.
Both lines share the same core hardware: a 2 inch, 2.5 inch, or 3 inch shank depending on capacity, dual-ball versatility, and adjustable drop and rise. They are both good for boats, campers, and work trailers. BOSS is best for protecting cargo and giving passengers a smoother ride. MEGA-DUTY is best where adjustability matters most and ride quality matters less. The choice mostly comes down to whether ride quality is worth the added cost. More on how Torsion-Flex works is covered on the Torsion-Flex technology page.
Drop Hitch Safety Checks Before Every Tow
A few checks before pulling out cover most of the risk in a bumper pull tow.
- Confirm the truck's tow rating, the receiver, the hitch, the ball, and the coupler all meet or exceed the trailer's loaded weight. The system is only as strong as the weakest rated part in it.
- Confirm the coupler is latched and properly connected to the ball.
- Confirm the ball mount is pinned in the slot you measured for.
- Confirm the safety chains are crossed under the coupler and attached to the vehicle's designated safety chain attachment points.
- Confirm the trailer breakaway cable is attached to the correct spot on the tow vehicle, as the trailer manufacturer specifies.
- Check that the trailer sits level, not nose up or nose down, once it is hooked up and loaded.
- Recheck tongue weight if cargo shifted since the last trip, especially on trailers loaded close to capacity.
None of these checks take more than a few minutes, and they are the difference between a routine tow and a dangerous one.
Find the right drop hitch for your truck
Measure your setup and shop the full bumper pull range in the Bumper Pull Towing collection, or use the dealer finder to locate an authorized dealer near you.
