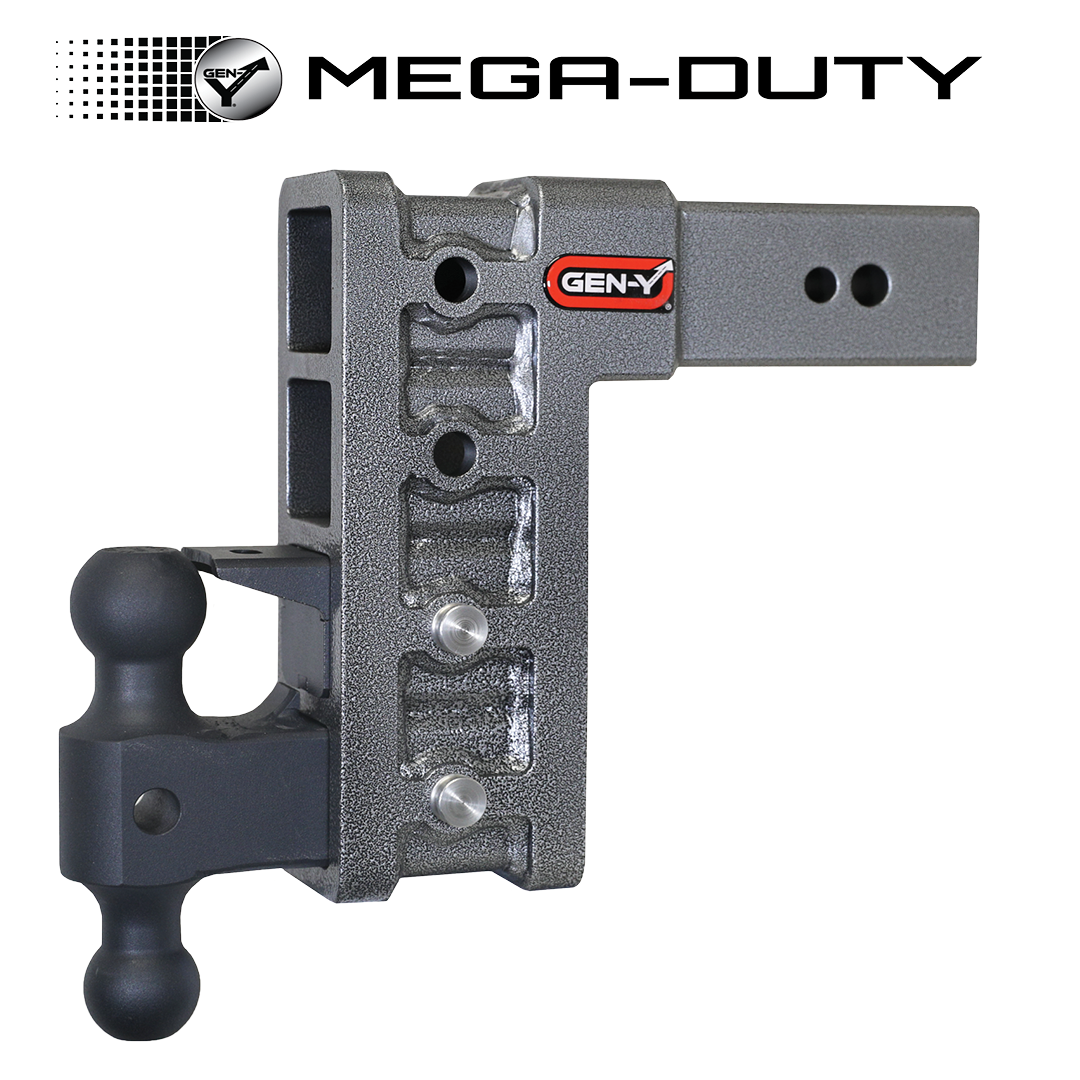

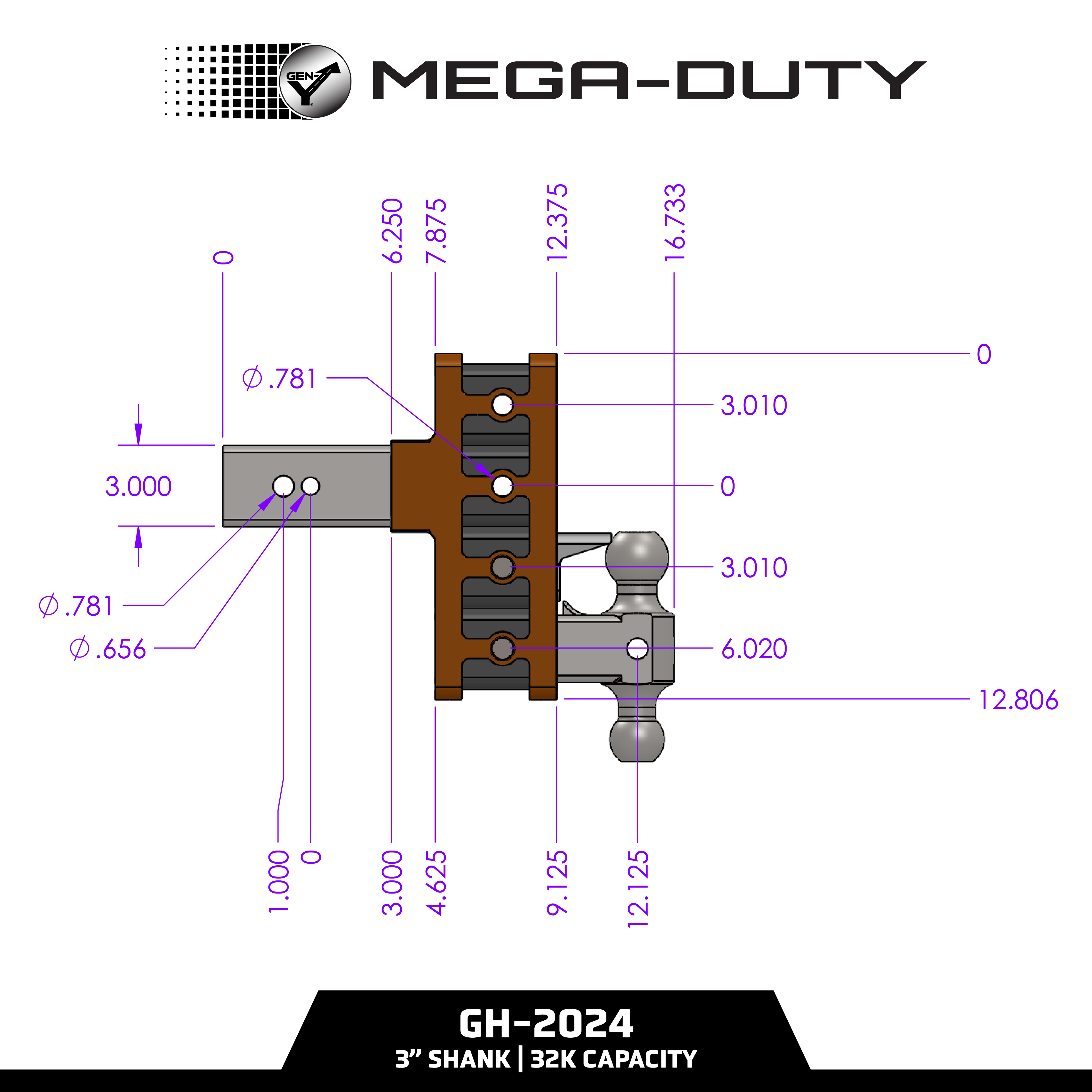

The MEGA-DUTY 32K Drop Hitch (2 ½" or 3" Shank)

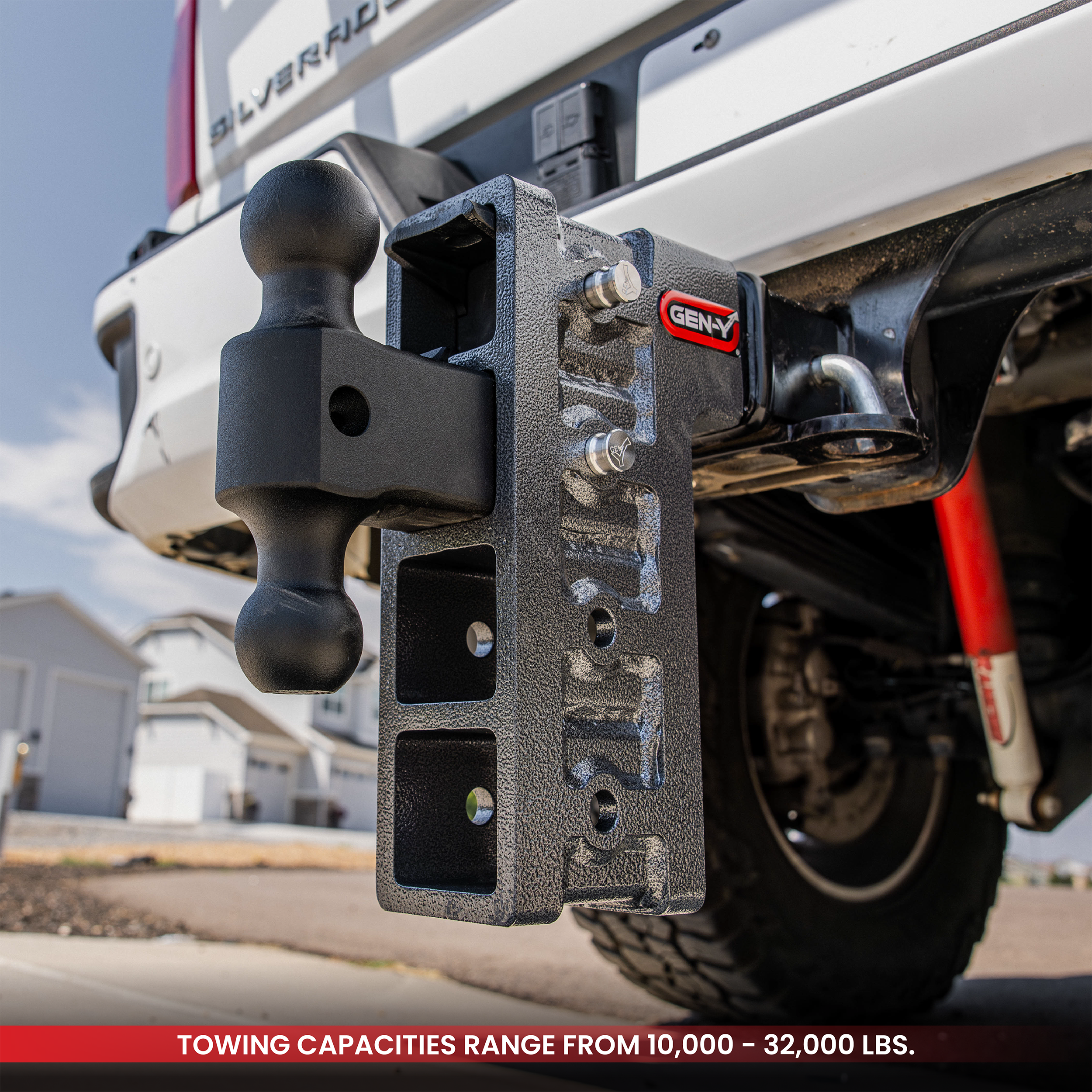

The MEGA-DUTY 32K Drop Hitch is rated to tow up to 32,000 pounds, with a 3,500 pound tongue weight capacity, when secured with the required 3/4 inch pin. It comes in 2.5 inch and 3 inch receiver sizes and adjusts through a 6 to 12 inch drop or rise range. All GEN-Y Hitch products are tested to exceed SAE J684 weight testing requirements, and the hitch carries a limited lifetime warranty. Because the full 32,000 pound rating depends on pin size, always confirm you are using the 3/4 inch pin before loading to capacity.

You need the 3/4 inch diameter hitch pin to reach the full 32,000 pound rating. If you use the 5/8 inch pinhole instead, the hitch is derated to 21,000 pounds. This distinction matters because both pin sizes fit the hitch, so it is easy to grab the wrong one without noticing a rating change. GEN-Y includes correct pin sizing information with the hitch, and replacement 3/4 inch pins are available directly if the original is lost or damaged. Always match your pin size to the weight you intend to tow.

Yes. Using the 5/8 inch pinhole derates the MEGA-DUTY 32K Drop Hitch from its full 32,000 pound rating down to 21,000 pounds. The hitch itself does not change, but the smaller pin cannot safely handle the same load, so GEN-Y caps the rating accordingly. To tow at the full 32,000 pound capacity, use the 3/4 inch pin instead. This is a common point of confusion, since both pins physically fit the hitch, so check your pin size before assuming you have the full rating available.

No. GEN-Y states plainly that the MEGA-DUTY 32K Drop Hitch is not rated for winching. It is engineered and tested for towing loads up to 32,000 pounds within its drop and rise positions, not for the pulling forces involved in winch operations. If you need a winch-rated setup, look at GEN-Y's dedicated towing or recovery products instead, or contact GEN-Y directly to confirm compatibility with your specific vehicle and use case before attempting any winching with this hitch.

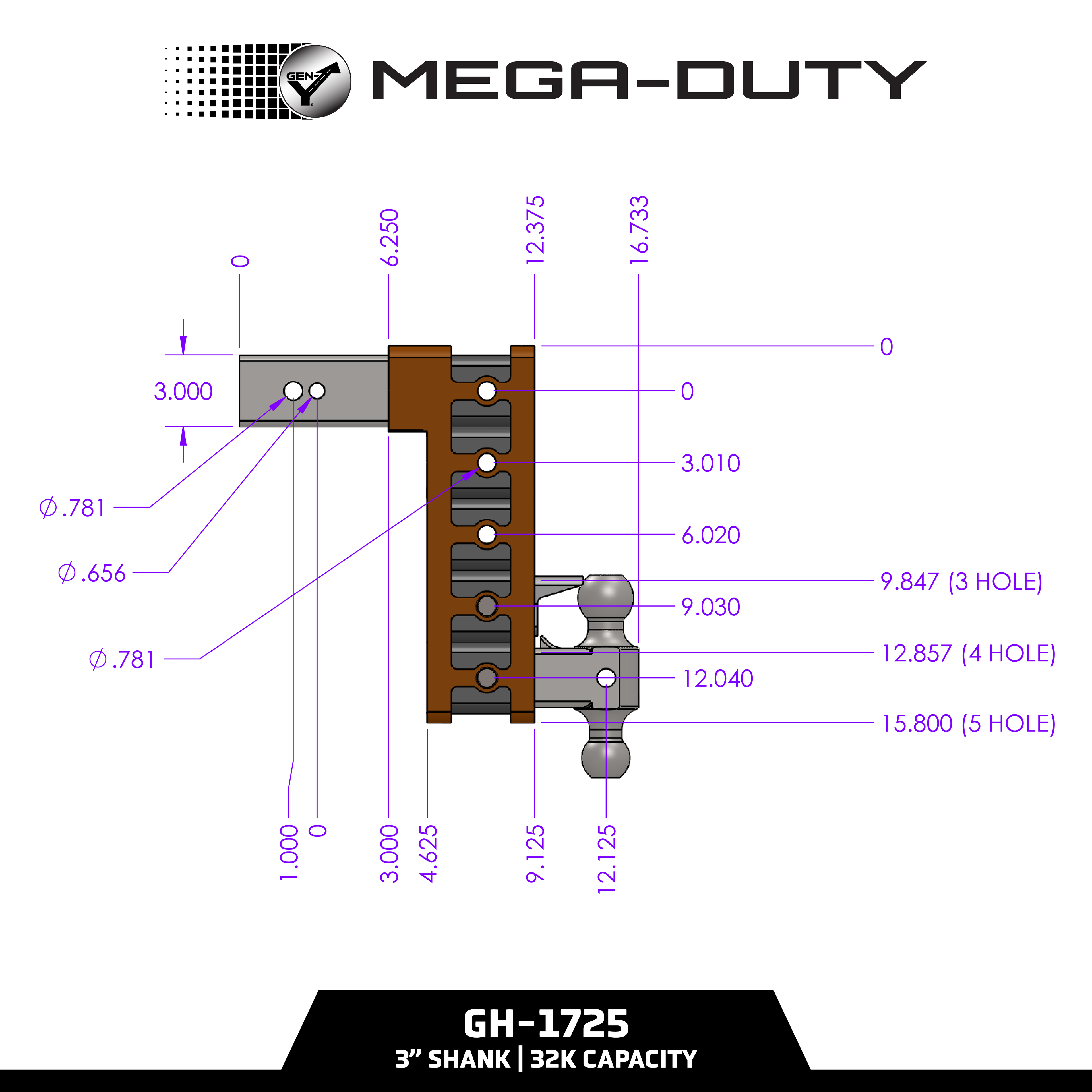

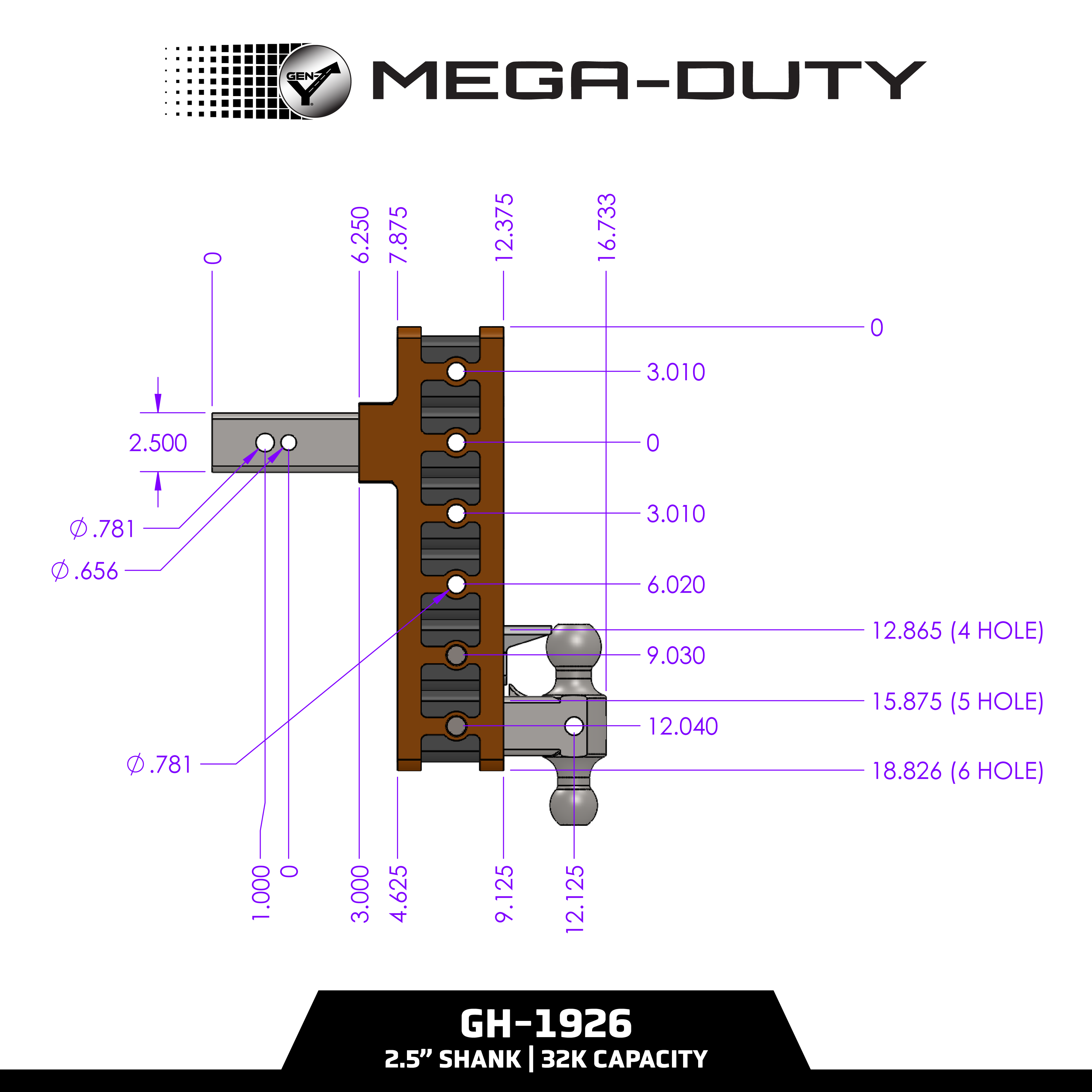

The MEGA-DUTY 32K Drop Hitch is available in 2.5 inch and 3 inch shank sizes to match your truck's receiver. The 3 inch option is only offered on select Ford vehicles manufactured after 2017, so confirm your receiver size before ordering. Both sizes carry the same 32,000 pound towing capacity and 3,500 pound tongue weight rating when used with the correct 3/4 inch pin, and both adjust through the same 6 to 12 inch drop or rise range.

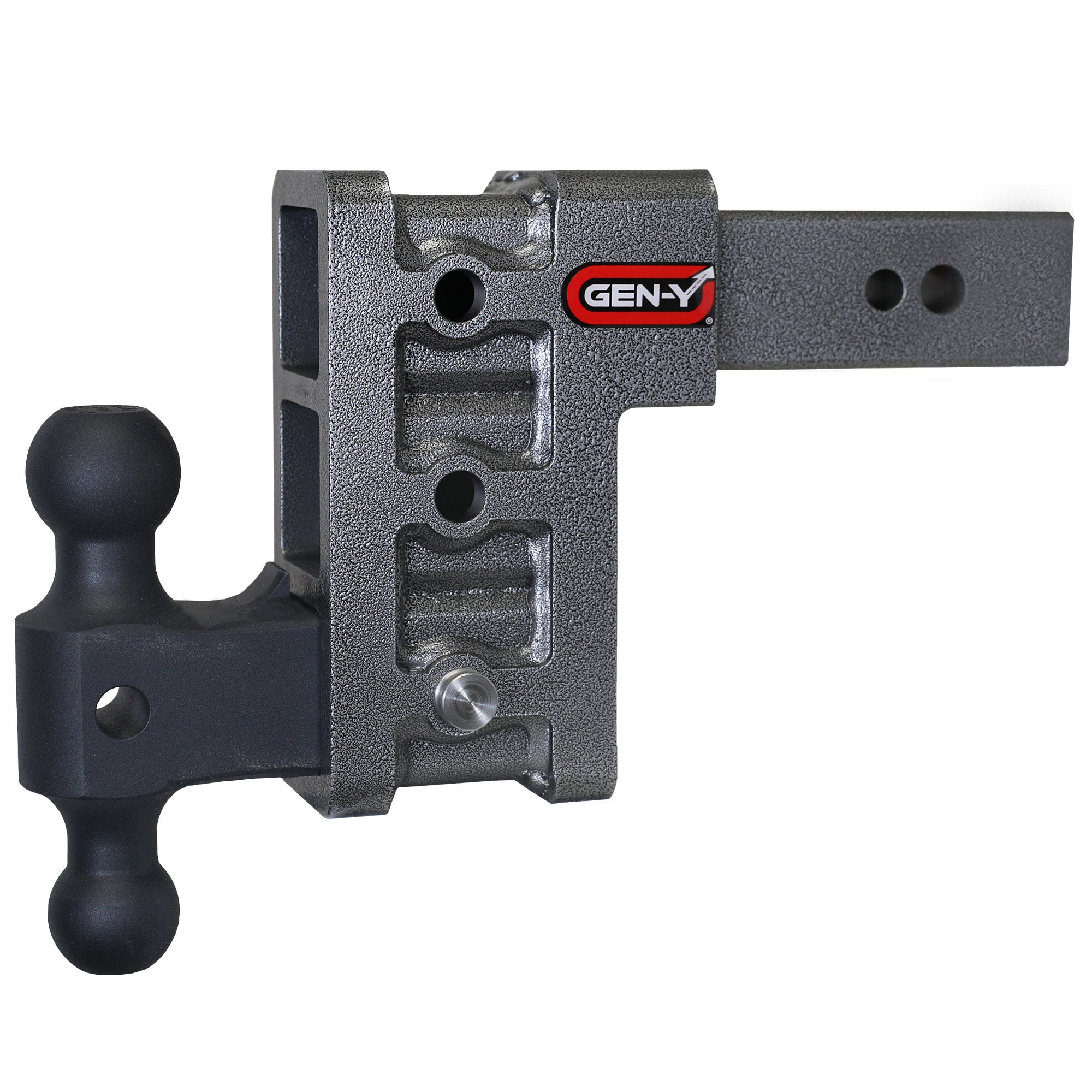

The base MEGA-DUTY 32K Drop Hitch (part number GH-1613) weighs 54 pounds. Weight can vary slightly by configuration, since drop distance, receiver size, and included accessories like a pintle lock or extra pins add a small amount of additional weight. The hitch is fabricated from heavy duty steel and finished with a zinc primer and epoxy powder coat for corrosion resistance, which contributes to its overall weight compared to lighter aluminum alternatives.

The MEGA-DUTY 32K Drop Hitch carries a 3,500 pound tongue weight rating. This applies across all receiver sizes and drop configurations for this model. Tongue weight is the downward force your trailer's coupler puts on the hitch ball, and staying within this rating, along with the 32,000 pound towing capacity, keeps the hitch operating within its tested limits under SAE J684 weight testing requirements. Never exceed the recommended capacity on any trailer coupling or vehicle receiver hitch.

Yes. The MEGA-DUTY 32K Drop Hitch is manufactured in the United States. GEN-Y Hitch fabricates it from heavy duty steel and finishes it with a durable powder coat for corrosion resistance. It is backed by a limited lifetime warranty and tested to exceed SAE J684 weight testing requirements. GEN-Y publishes USA Made compliance documentation on its site for buyers who want to verify domestic manufacturing before purchasing.

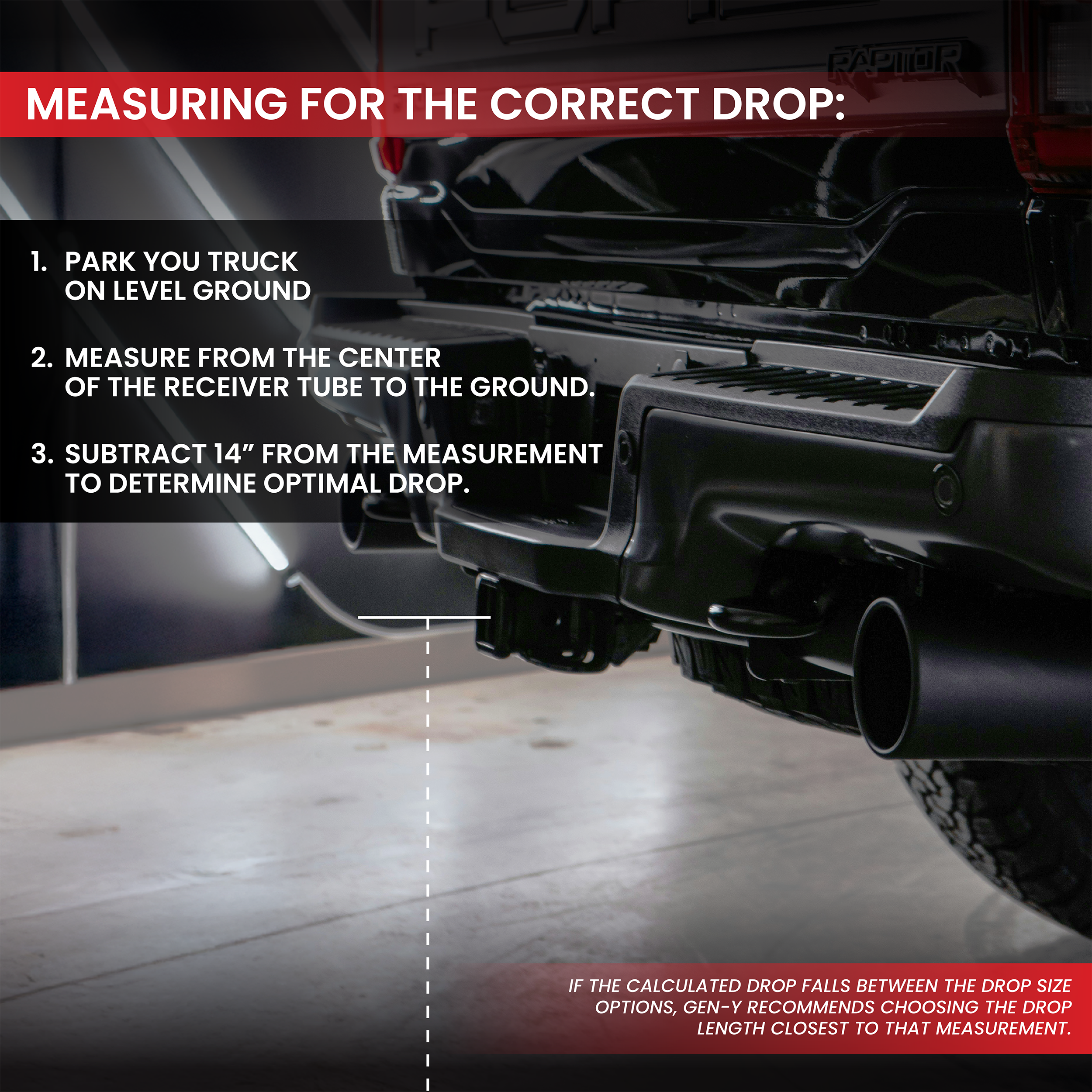

The MEGA-DUTY 32K Drop Hitch adjusts through a 6 to 12 inch drop or rise range, depending on which configuration you choose at checkout. You select a fixed drop option, such as 6, 9, or 12 inches, with multiple adjustable positions within that range by moving the pin and ball mount. Longer drops of 12 inches or more put additional leverage on your vehicle's receiver, so some manufacturers reduce their own rating in that configuration. Confirm your receiver's rated capacity at your chosen drop length before towing at full load.

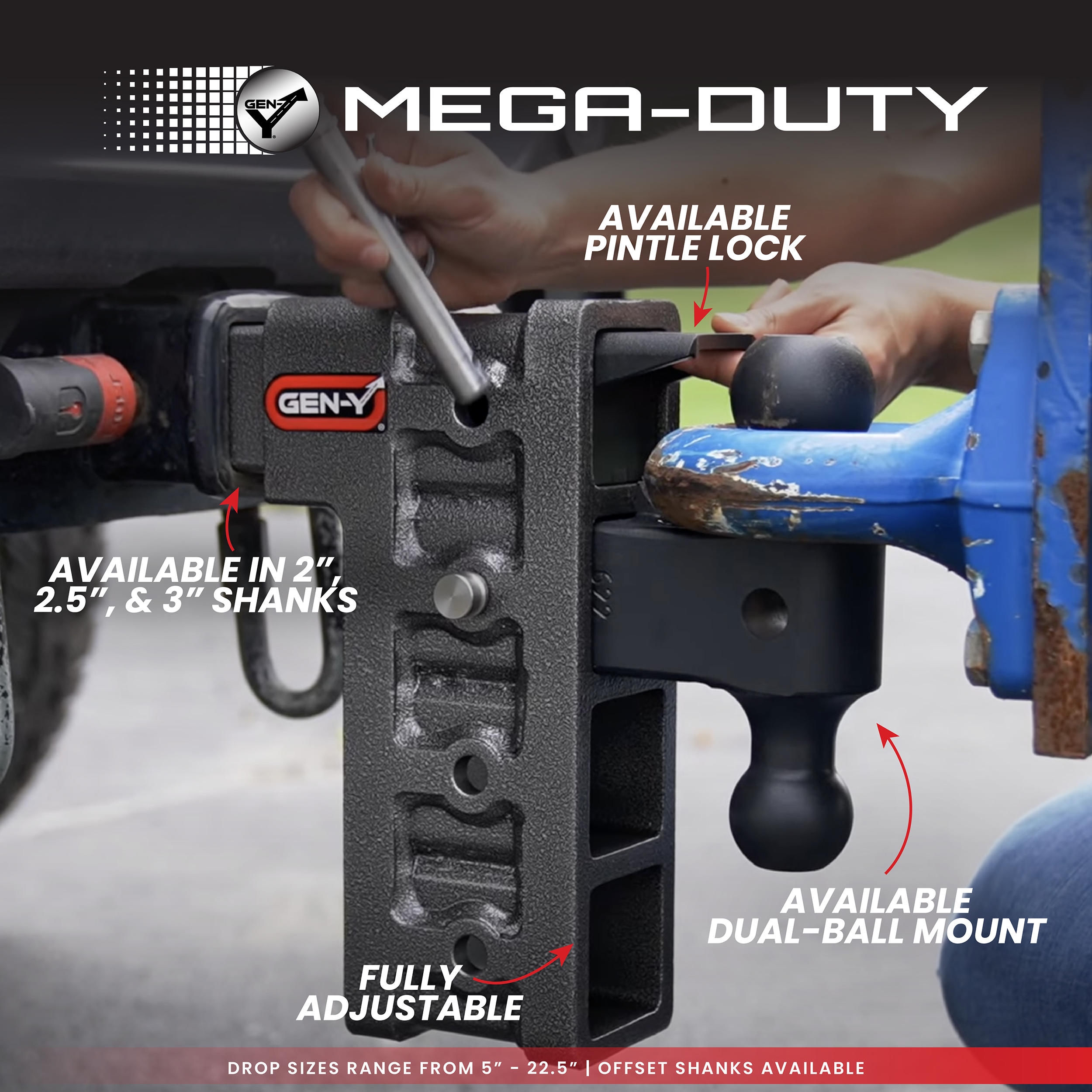

Use a 2 5/16 inch ball only. GEN-Y specifically warns against using a 2 inch ball for pintle ring towing on the MEGA-DUTY 32K Drop Hitch. The hitch is designed for lunette rings of 1.5 inches or smaller, and its dual ball mount option includes both 2 inch and 2 5/16 inch balls, but the 2 5/16 inch size is required specifically for pintle ring applications. Using the wrong ball size for this application is not rated by GEN-Y and should be avoided.
